$112.70
Available Now!
Product image is representative only, please verify specifications.
Available Now!
(1 in stock)
326161-0164
Alt: NBB10-30GM50-E2, (Was 083999)
$97.60

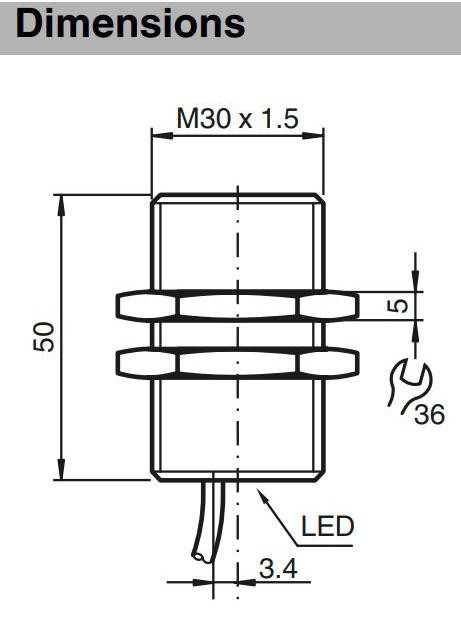

Inductive Proximity Sensor, 3-Wire DC, Flush, 30mm, 10-30VDC, 10mm Range, PNP NO, 2m Cable
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Output Type: PNP, 3-Wire
- Rated Operating Distance: 10 mm
- Assured Operating Distance: 0 - 8.1 mm
- Operating Voltage: 10 - 30 V
- Switching Frequency: 0 - 200 Hz
- Operating Current: 0 - 200 mA
- Switching State Indicator: all direction LED, yellow
- Installation: Flush
- Connection Type: Cable PVC, 2 m
- Housing Material/Sensing Face: PBT
