$3.91
M08P-12Y
Alt: M/H Series
$3.91

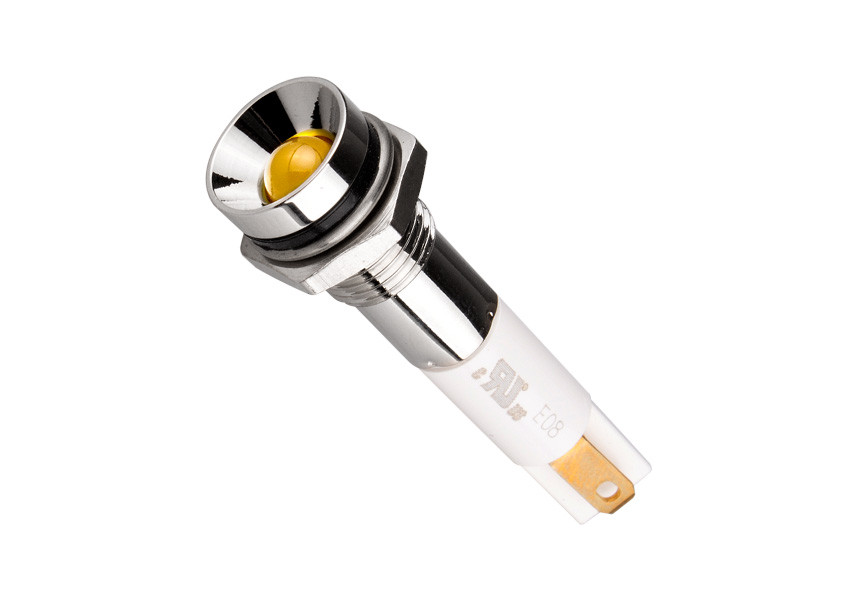

Indicator Light, Ø8mm, Protruding, 12VDC, Yellow, LED, Panel Mount, IP60
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Looking for a low cost LED indicator light with a bright chrome finish? Here it is!
This series offers a bright LED light that is available in five colors; red, green, yellow, blue and white. You can also choose from three bezel styles; flat, round and protruding. Please see the spec sheet for more information.
Specifications
Color
Yellow
Head Shape
Curved/Dome
All - Specific Ratings
IP60
Series
M/H Series
Size
8mm
Options
Panel Mount
All - Voltage
12VDC
Warranty
3 Years
Alternate Part Number
M/H Series
Weight
0.1
Features Include:
- Operating Temperature Range: -25 ~ +60 ° C
- Chrome plated brass, Plastic housing
- Dielectric strength: 500 VAC 50/60Hz for 1 minute (DC Type)
- Dielectric strength: 1000 VAC 50/60Hz for 1 minute (AC Type)*
- Insulation resistance: Max. 100MΩ (at 500VDC mega)
