11071531
Alt: POG9 DN 1024 I
$1,862.56
Incremental Heavy Duty Encoder without EMS (Enhanced Monitoring System), Ø11mm Solid Shaft with EURO Flange B10, 1024 PPR (Pulses per Revolution), 9-30VDC / Output Stage HTL with Inverted Signals
- Weight:
- 3.20 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Specifications
Alternate Part Number
POG9 DN 1024 I
Diameter
See Spec or N/A
Type of Product
See Spec
Warranty
3 Years
Weight
3.2
Features Include:
- Voltage supply: 9 - 30 VDC, 5 VDC ±5 %
- Consumption w/o load: ≤100 mA
- Pulses per revolution: 300 - 5000
- Reference signal: Zero pulse, width 90°
- Sensing method: Optical

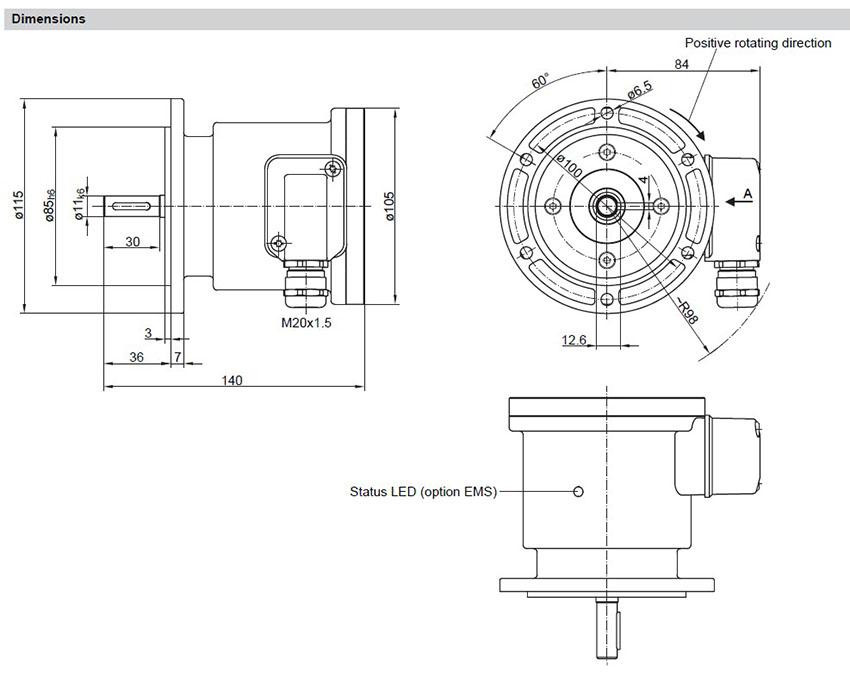

- Encoder with solid shaft ø11 mm
- Size (flange): ø115 mm
- Shaft type: ø11 mm solid shaft
- Optical sensing method
- EURO flange B10
- Very high resistance to shock
- Output stage HTL or TTL
- TTL output driver for cable length up to 550 m
- Material: Housing: aluminum die-cast, Shaft: stainless steel
- Connection: Terminal box
