1337020000
Alt: MC40A-40-00-U7-S-E, Non-Cancellable / No Returns
$99.77

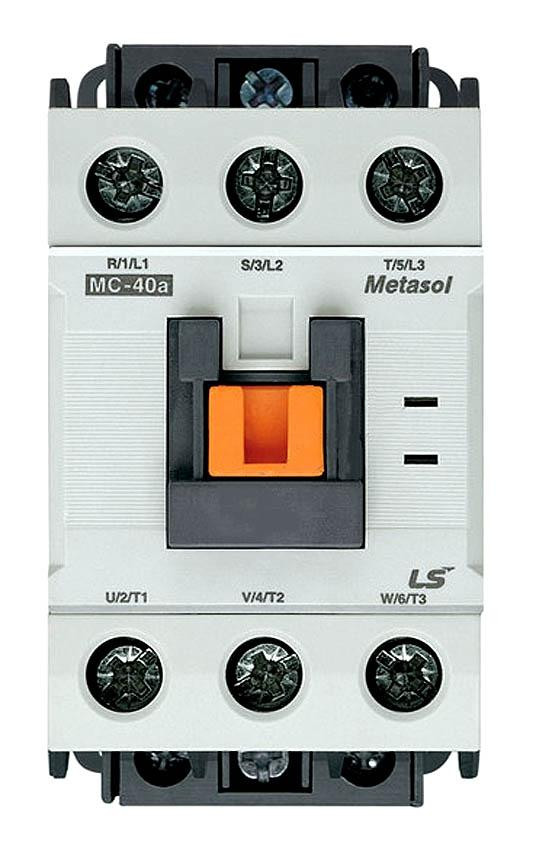

IEC Contactor, General Purpose, MC-40a, 240VAC, Metasol, MC-Series, NCNR
- Weight:
- 1.21 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
LSIS's Metasol series consists of IEC contactors and overload relays that are available in 25 models in 9 frame sizes.
You can DIN rail mount (no extra tools needed), they are simple to wire, screw terminals and there are 2 built-in NO contacts.
Front/side mountable accessories available.
18AF:
- Contactor MC-6a, 9a, 12a, 18a
- Overload Relay MT-12
22AF
- MC-9b, 12b, 18b, 22b
- Overload Relay MT-32
40AF
- MC-32a, 40a
- Overload Relay MT-32
65AF
- MC-50a, 65a
- Overload Relay MT-63
100AF
- MC-75a, 85a, 100a
- Overload Relay MT-95
150AF
- MC-130a, 150a
- Overload Relay MT-150
Specifications
Alternate Part Number
MC40A-40-00-U7-S-E, Non-Cancellable / No Returns
Amp Rating
40 Amp
Coil Voltage
240V Coil
Motor Control Type
IEC Contactors
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated
Series
MC Series
Options
No Special Options
Terminal Type
Screw Terminals
All - Voltage
220/240VAC
Warranty
2 Years
Weight
1.21

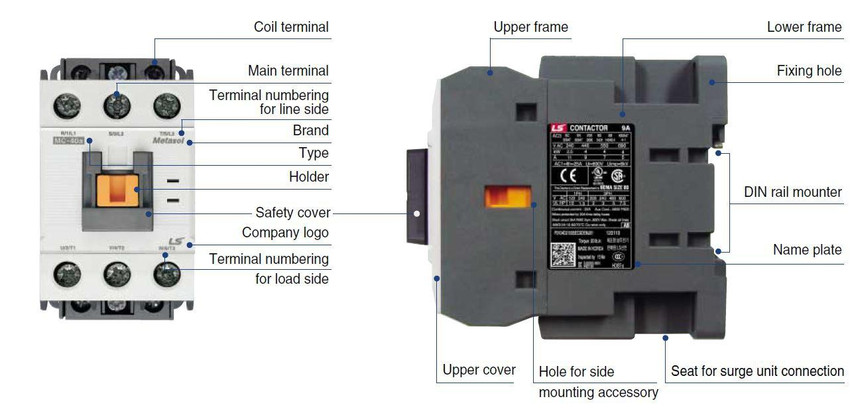

Features Include:
- AC Dimensions (W x H x D mm): 69 x 83 x 93
- DC Dimensions (W x H x D mm): 69 x 83 x 120
- 3-pole(NO) main contact
- Finger proof design
- DIN rail or screw mountable
- AC or DC control in different physical size
- Front/side mountable accessories available
- Direct mountable overload relay available Rating
- 2NO2NC Auxiliary contact built-in is possible as standard
