1364002300
Alt: MC150A-30-22-MU-S-E, Non-Cancellable, No Returns
$361.21

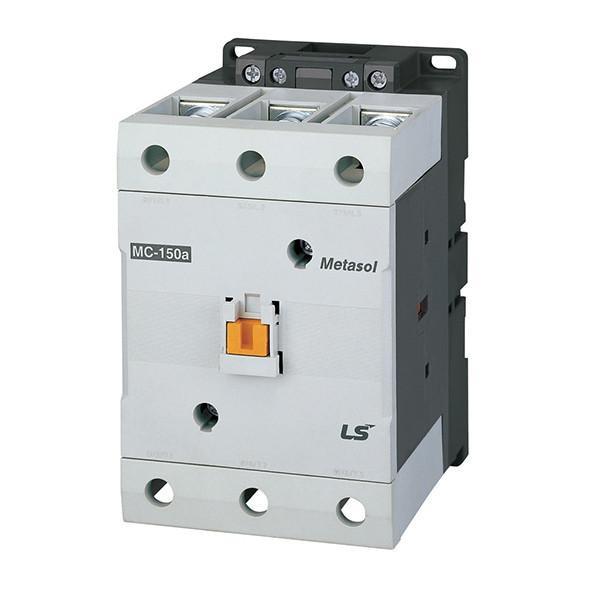

IEC Contactor, General Purpose, MC-150a, 220-240VAC, Metasol, MC-Series
- Weight:
- 5.29 LBS
- Minimum Purchase:
- 1 unit
Description
LSIS's Metasol series consists of IEC contactors and overload relays that are available in 25 models in 9 frame sizes.
You can DIN rail mount (no extra tools needed), they are simple to wire, screw terminals and there are 2 built-in NO contacts.
Front/side mountable accessories available.
18AF:
- Contactor MC-6a, 9a, 12a, 18a
- Overload Relay MT-12
22AF
- MC-9b, 12b, 18b, 22b
- Overload Relay MT-32
40AF
- MC-32a, 40a
- Overload Relay MT-32
65AF
- MC-50a, 65a
- Overload Relay MT-63
100AF
- MC-75a, 85a, 100a
- Overload Relay MT-95
150AF
- MC-130a, 150a
- Overload Relay MT-150
Features Include:
- Dimensions (W x H x D mm): 119 x 158 x 130.3
- 3-pole(NO) main contact
- Finger proof design
- DIN rail or screw mountable
- Both screw and Box terminal (lug) type are available
- AC or DC control in the same physical size
- Front/side mountable accessories available
- Direct mountable overload relay available
- 2NO2NC Auxiliary contact built-in is possible as standard
