ICS30L50N22NCM1E1
Carlo Gavazzi

ICS30L50N22NCM1E1

Alt: Minimum Order 10 Pieces, Price per Piece

$100.00

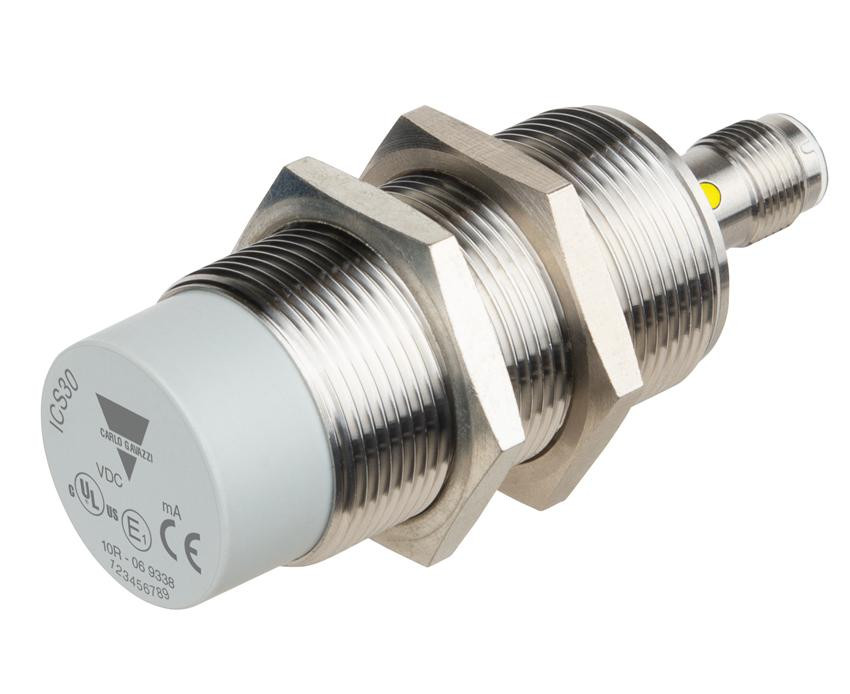

Inductive Proximity Sensor, M30 Stainless Steel, M12-Plug, 22mm Range, Non-Flush, NPN NC Output, 8-60VDC, 200mA, Maximum Operating Frequency 0.3 kHz, Operating Temperature -40C to +85C, IP67-IP68-IP69K, 200 V/m Radiated Noise Immunity, Load

Weight:
0.50 LBS
Minimum Purchase:
10 units
Adding to cart… The item has been added
Description

Carlo Gavazzi's E1-Rated ICS series of inductive proximity sensors were specifically designed for the challenging applications on mobile equipment.

These sensors offer unrivaled performance focusing on reliable detection and reduced downtime.

E1-approved inductive sensors give you accurate and reliable detection of actuating parts such as hydraulic pistons, gear speed, crane position and movement on refuse vehicles, mobile cranes, concrete mixers, tractors, fire trucks, harvesting equipment, buses, forklifts, and more.

These mobile platforms are typically exposed to high levels of shock and vibration from the terrain, exposure to salt and debris from the road and vehicle engine refuse gases, extreme voltage peaks if a battery is disconnected from the alternator, wide operating temperature ranges due to the environment and proximity to engines and exhaust systems, and electromagnetic interferences generated by radio transmitters.

What is an E1 Certified Sensor?

On mobile equipment, sensors must operate in very low ambient temperatures as well as very high operating temperatures (heat from engines and exhaust systems). Thanks to their special design, Carlo Gavazzi E1 sensors can operate continuously between -40°C to +85°C (-40° to +185°F).

Additional features:

  • AISI 304 stainless steel housing
  • IP68 and IP69K ingress protection rating
  • Salt spray tested (EN 60068-2-52 Kb)
  • Shock resistance up to 100g continuous 40g shock (EN 60068-2-27 Ea)
  • Vibration resistance to 20g (EN 60068-2-6)
  • Load-dump protection (ISO 7637-2 / SAE J1113-11)
  • Operating temperature range -40 to 185°F

Features Include:

  • Switching distance: 22 mm
  • Output function: Normally Closed (NC)
  • Connector: M12
  • Supply voltage: 8 V - 60 V
  • 8-60Vdc, 200 mA
  • Max op. freq. 0.3 kHz
  • Cylindrical, threaded barrel, Non-flush
  • Output type: NPN
  • Radiated Noise Immunity
  • Load Dump Protection
