ICS08S30N25POM1
Carlo Gavazzi

ICS08S30N25POM1

Alt: Minimum Order 10 Pieces, Price per Piece

$51.20

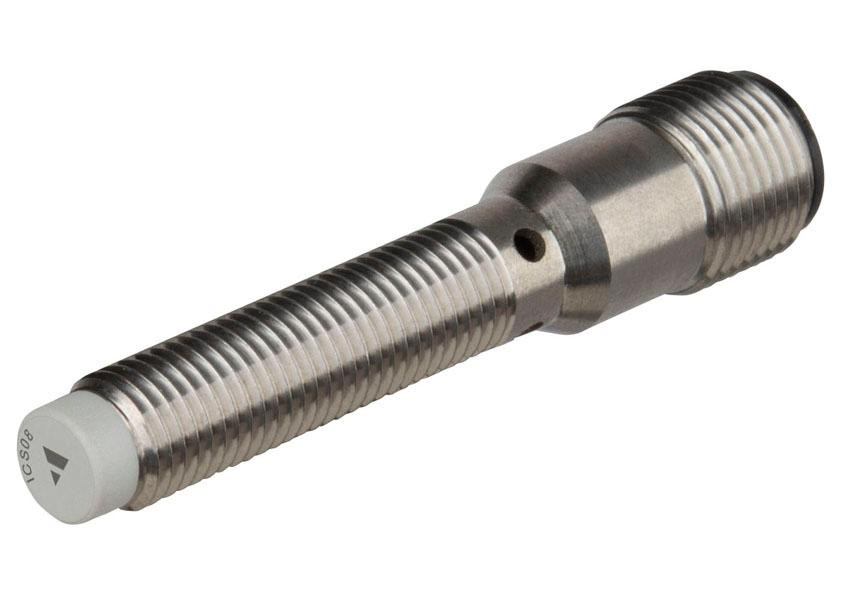

Inductive Proximity Sensor, M8 Stainless Steel, Non-Flush, 10-36VDC, 2.5mm Range, Short Body, PNP, NO, Max Output Current 200mA, M12 Plug, 10 x 220 x 220mm (HWL), -25C - +80°C Operating Temperature, IP67

Weight:
0.10 LBS
Minimum Purchase:
10 units
Adding to cart… The item has been added
Description

Carlo Gavazzi's E1-Rated ICS series of inductive proximity sensors were specifically designed for the challenging applications on mobile equipment.

These sensors offer unrivaled performance focusing on reliable detection and reduced downtime.

E1-approved inductive sensors give you accurate and reliable detection of actuating parts such as hydraulic pistons, gear speed, crane position and movement on refuse vehicles, mobile cranes, concrete mixers, tractors, fire trucks, harvesting equipment, buses, forklifts, and more.

These mobile platforms are typically exposed to high levels of shock and vibration from the terrain, exposure to salt and debris from the road and vehicle engine refuse gases, extreme voltage peaks if a battery is disconnected from the alternator, wide operating temperature ranges due to the environment and proximity to engines and exhaust systems, and electromagnetic interferences generated by radio transmitters.

What is an E1 Certified Sensor?

On mobile equipment, sensors must operate in very low ambient temperatures as well as very high operating temperatures (heat from engines and exhaust systems). Thanks to their special design, Carlo Gavazzi E1 sensors can operate continuously between -40°C to +85°C (-40° to +185°F).

Additional features:

  • AISI 304 stainless steel housing
  • IP68 and IP69K ingress protection rating
  • Salt spray tested (EN 60068-2-52 Kb)
  • Shock resistance up to 100g continuous 40g shock (EN 60068-2-27 Ea)
  • Vibration resistance to 20g (EN 60068-2-6)
  • Load-dump protection (ISO 7637-2 / SAE J1113-11)
  • Operating temperature range -40 to 185°F

Features Include:

  • Sensing Distance: 2.5 mm
  • Connector: Connector M12
  • Supply voltage: 10-36VDC
  • Max output current 200 mA
  • Max switching frequency: 2 kHz
  • Short housing with thread barrel of 30 mm
  • Material: Housing: stainless steel AISI304, Front cap: Grey thermoplastic polyester
  • Output function: Programmable/configurable
  • The operating distance is measured according to IEC 60947-5-2, using a standard target moving axially.
  • This target is square shape 1 mm thickness, made of steel e.g. type Fe 360 as defined in ISO 630 and it shall be of the rolled finish.
  • The length of the side of the square is equal to – the diameter of the circle inscribed on the active surface of the sensing face, or – three times the rated operating distance Sn whichever is greater
