Kacon
HR705-4PL-110VDC

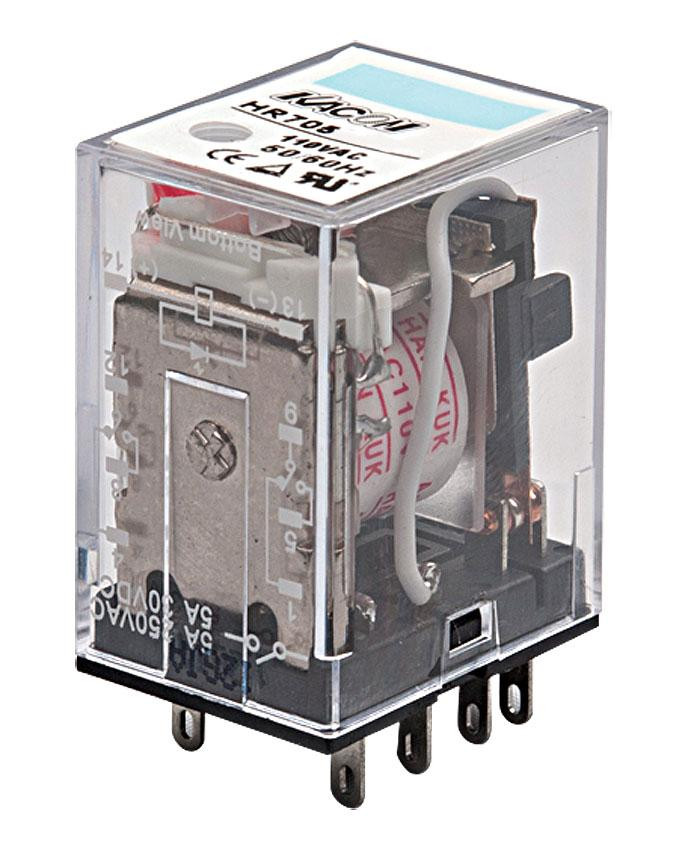

Electro Mechanical Relay, Cube Type, 3A, 4PDT, 110VDC Coil Input, LED Indicator, Socket Required
$7.01
HR705-4PL-110VAC
$7.01
Ice Cube Relay, 3A 4PDT, 110VAC Input, LED, Socket Required
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Features Include:
- Configuration: 4PDT (4NO + 4NC)
- Material: Silver alloy (24K gold plate)
- Rated Max. Resistive Load: 3A at 24VDC/240 VAC
- Max. Switching Voltage: 125VDC/ 250VAC
- Min. Switching Requirement: 100mA 5VDC
- Operating Time: 20ms
- Insulation Resistance: 100MΩ at 500V DC
- Vibration Resistant: 10~55Hz at double amplitude of 1.5mm
- 705 Series are designed with compact housing & ICE cube style, silver alloy contact, LED indicator, high reliability and long life
- Available Serge protection type to protect malfunction of PLC, electronic devices from back EMF
Need More Information?:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$7.01
Kacon
HR705-4PL-24VAC
Electro Mechanical Relay, Cube Type, 3A, 4PDT, 24VAC Coil Input, LED Indicator, Socket Required
$7.01
$7.01
$7.01
Kacon
HR705-4PLC-110VAC
Electro Mechanical Relay, Cube Type, 3A, 4PDT, 110VAC Coil Input, LED Indicator, Surge Protection, Socket Required
$8.42
$15.04
Kacon
HR705-2PL-110VAC
Electro Mechanical Relay, Cube Type, 5A, DPDT, 110VAC Coil Input, LED Indicator, Socket Required
$6.08
Kacon
HR705-2PLC-110VAC
Electro Mechanical Relay, Cube Type, 5A, DPDT, 110VAC Coil Input, LED Indicator, Surge Protection, Socket Required
$7.30
