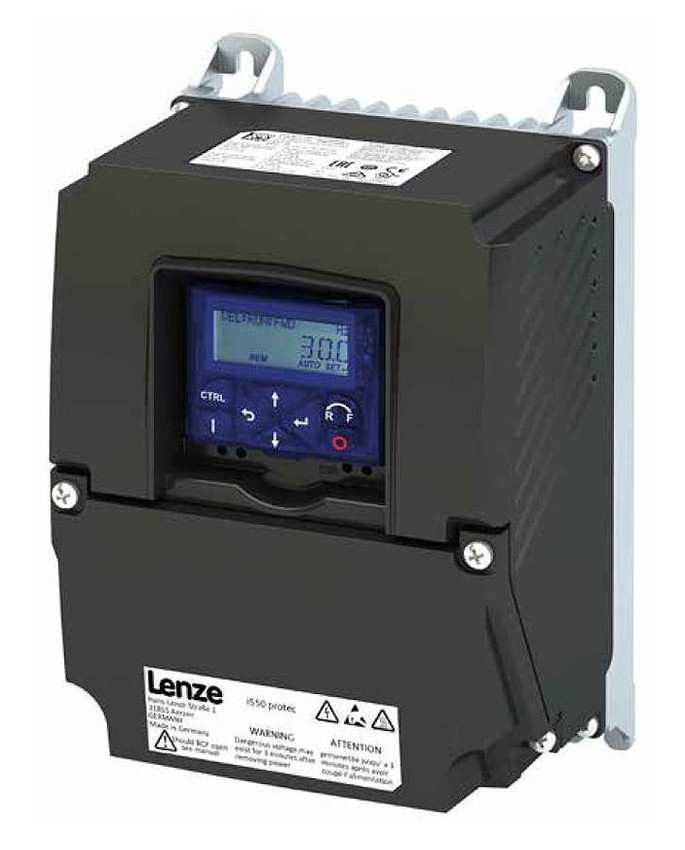

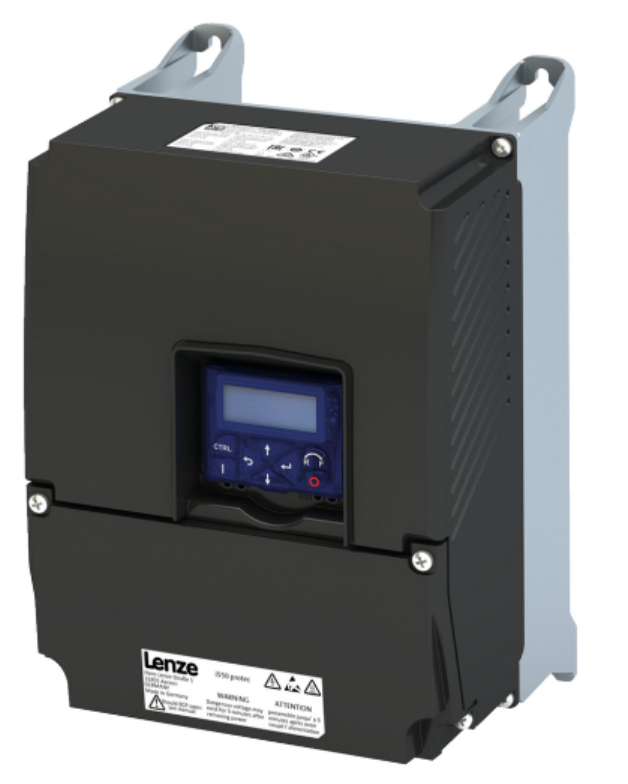

I55AP255F00311K00S

Lenze Americas is a U.S. based global company that designs and manufacturers inverters, gear motors and mechanical components.



Lenze Americas was formerly known as AC Tech and continues to manufacturer these popular drives. Lenze Americas is headquartered in Massachusetts while Lenze SE corporate headquarters are located in Hamelin, Germany.

Series Features Include:

• The protection level of IP31 (NEMA 1) or IP66 (NEMA 4X) with indoor and outdoor approval, this means hose proof and dust-tight, also allows the use in rough environments
• First decentral drive in the market with IO-Link Device Interface
• Intuitive user interface for fast setup and easy navigation by parameter structure
• EPM module for simple series commissioning and device replacement
• USB Micro diagnostic interface on board
• Versions with or without repair switch, with keypad, USB or WLAN diagnostic module for easy plug & play operation
• Motor Control Options: Servo control (SC-ASM) with feedback, Sensorless vector control for synchronous motors (up to 22 kW), Sensorless vector control (SLVC), Energy saving function (VFC-Eco), V/f characteristic control linear/square-law (VFC plus), V/f characteristic control with feedback
• Functions: DC-injection braking, Brake management for brake control with low rate of wear, Dynamic braking through brake resistor, S-ramps for smooth acceleration and deceleration, Flying restart circuit, PID controller, DC connection
• Networks: CANopen, Modbus RTU, Modbus TCP, IO-Link, EtherCAT, EtherNet/IP, PROFINET

Technical Information:

• Lenze i550 Protec Frequency Inverter Flyer
• Lenze i5x0 Series Frequency Inverter Brochure
• Lenze i5x0 Protec Frequency Inverter Operating Instructions
• Lenze i5x0 Protec Frequency Inverter Project Planning Manual
• Lenze i550 Protec Frequency Inverter Commissioning Manual
• Lenze i500 Protec Frequency Inverter Quick Price Guide
• Lenze MC NEMA 4, 4X, 12 to i550 protec IP66, IP54 Substitution Guideline

Options Technical Information:

• Lenze i550 Protec Frequency Inverter Mounting and Switch-On Instruction Manual
• Lenze i550 Protec Frequency Inverter Switch/Potentiometer Set Manual
• Lenze i510/i5510 Protec Frequency Inverter Reference Card Inverter Guide

Lenze Frequency Inverter Series i500 Video
