Lenze
I5MADW0000000S
Wifi Direct Interface Module, WLAN, Use with App/EasyStarter for i510 and i550 Drives
$117.76
Product image is representative only, please verify specifications.

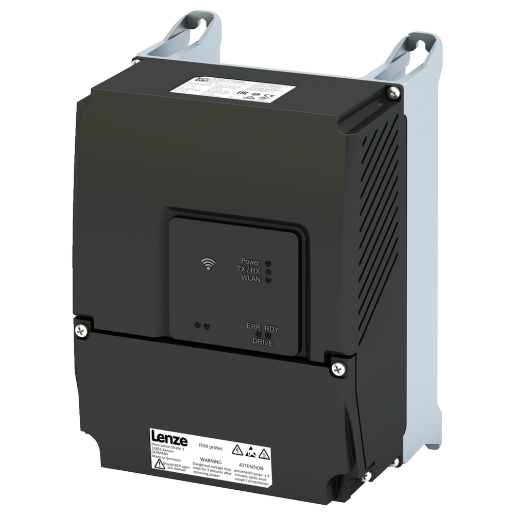

I55AP240F00711W06S
Alt: i550 Protec Series
$1,083.88
VFD, 4.0kW, 5.0hp, 400/480V, 3/PE, No Safety Technology, NEMA 4X, IP66, Integrated RFI Filter, WLAN Module, Standard I/O + IO-Link
- Weight:
- 10.80 LBS
- Minimum Purchase:
- 1 unit
Description
Lenze Americas is a U.S. based global company that designs and manufacturers inverters, gear motors and mechanical components.
Lenze Americas was formerly known as AC Tech and continues to manufacturer these popular drives. Lenze Americas is headquartered in Massachusetts while Lenze SE corporate headquarters are located in Hamelin, Germany.
Series Features Include:
- The protection level of IP31 (NEMA 1) or IP66 (NEMA 4X) with indoor and outdoor approval, this means hose proof and dust-tight, also allows the use in rough environments
- First decentral drive in the market with IO-Link Device Interface
- Intuitive user interface for fast setup and easy navigation by parameter structure
- EPM module for simple series commissioning and device replacement
- USB Micro diagnostic interface on board
- Versions with or without repair switch, with keypad, USB or WLAN diagnostic module for easy plug & play operation
- Motor Control Options: Servo control (SC-ASM) with feedback, Sensorless vector control for synchronous motors (up to 22 kW), Sensorless vector control (SLVC), Energy saving function (VFC-Eco), V/f characteristic control linear/square-law (VFC plus), V/f characteristic control with feedback
- Functions: DC-injection braking, Brake management for brake control with low rate of wear, Dynamic braking through brake resistor, S-ramps for smooth acceleration and deceleration, Flying restart circuit, PID controller, DC connection
- Networks: CANopen, Modbus RTU, Modbus TCP, IO-Link, EtherCAT, EtherNet/IP, PROFINET
Technical Information:
- Lenze i550 Protec Frequency Inverter Flyer
- Lenze i5x0 Series Frequency Inverter Brochure
- Lenze i5x0 Protec Frequency Inverter Operating Instructions
- Lenze i5x0 Protec Frequency Inverter Project Planning Manual
- Lenze i550 Protec Frequency Inverter Commissioning Manual
- Lenze i500 Protec Frequency Inverter Quick Price Guide
- Lenze MC NEMA 4, 4X, 12 to i550 protec IP66, IP54 Substitution Guideline
Options Technical Information:
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Lenze
I5MADK0000000S
Keypad for i510 and i550 Drives, You Can Use Optional Keypad, Lenze Smart Keypad app (download) or the EASY Starter for Diagnostics and Parameter Selection/Adjustments.
$56.79
$40.57
Lenze
I5MASAV000000S
Safety Function STO (Safety Torque Off), For i550 Series, Can Be Retrofitted to i550 Drives; i550-Cxxx/120-1, i550-Cxxx/230-1, i550-Cxxx/230-2, i550-Cxxx/230-3, i550-Cxxx/400-3
$64.92
Lenze
I5MADR0000000S
External Keypad Mount for i510 and i550 Drives, No Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$103.46
Lenze
I5MADR0000001S
External Keypad Mount for i510 and i550 Drives, 3m Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$146.06
