HW2B-M2F11-B
Alt: HW Series, Non-Cancellable, No Returns
$18.66

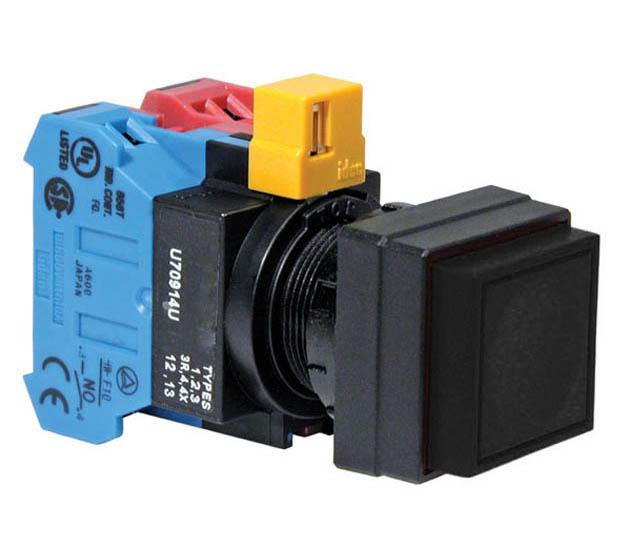

Pushbutton, 22mm, Square, Extended, Black, Momentary, 1NO/1NC, Fingersafe, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.
- Space saving with reduced contact block depth
- IP20 finger-safe protection
- High voltage LED for illuminated pushbuttons
- Can be ordered assembled or in components
- Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
- IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40
Series information:
- HWxB: Non-illluminated
- HWxL: Illuminated
- HW1 - Round black bezel
- HW2 - Square black bezel
- HW4 - Round metal bezel
Assembled units:
- Available in momentary (M) or Maintained (A)
- Contact configurations:
- 10: 1NO
- 01: 1NC
- 11: 1NO/1NC
- 20: 2NO
- 02: 2NC
- 22: 2NO/2NC
Series Features Include:
- Finger safe (IP20) screw terminals standard,
- Accept ring, fork or ferrule terminals and bare wires,
- All E-Stops meet EN418 (IEC compliant, positive action),
- UL listed, CSA certified, TUV approved, and CE marked,
- Super bright LED illumination,
- UL Type 4X, IP65, 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC
