IDEC
HW1L-M1F10QD-A-120V
Pushbutton, 22mm, Plastic, Round, Flush, Amber, LED, Momentary, 1NO, 120V, NCNR
$27.28

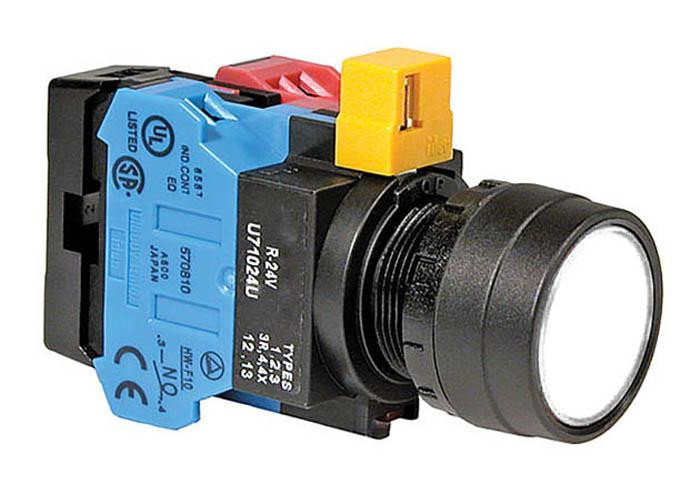

Product image is representative only, please verify specifications.
HW1L-M1F10QD-W-120V
Alt: HW Series, Non-Cancellable, No Returns
$27.28
Pushbutton, 22mm, Plastic, Round, Flush, White, LED, Momentary, 1NO, 120V, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.
- Space saving with reduced contact block depth
- IP20 finger-safe protection
- High voltage LED for illuminated pushbuttons
- Can be ordered assembled or in components
- Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
- IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40
Series information:
- HWxB: Non-illluminated
- HWxL: Illuminated
- HW1 - Round black bezel
- HW2 - Square black bezel
- HW4 - Round metal bezel
Assembled units:
- Available in momentary (M) or Maintained (A)
- Contact configurations:
- 10: 1NO
- 01: 1NC
- 11: 1NO/1NC
- 20: 2NO
- 02: 2NC
- 22: 2NO/2NC
Features Include:
- Finger safe (IP20) screw terminals standard
- Accept ring, fork or ferrule terminals and bare wires
- All E-Stops meet EN418 (IEC compliant, positive action)
- UL listed, CSA certified, TUV approved, and CE marked
- Super bright incandescent or LED illumination
- UL Type 4X, IP65
- 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
HW1L-M1F10QD-G-120V
Illuminated Pushbutton, 22mm, Plastic Bevel, Momentary, Round, Flush, 1NO, Full Voltage, Green Lens, 120VAC/DC LED Lamp Voltage, Screw Terminal
$27.28
IDEC
HW1L-M1F10QD-Y-120V
Pushbutton, 22mm, Plastic, Round, Flush, Yellow, LED, Momentary, 1NO, 120V, NCNR
$27.28
$34.37
$27.28
IDEC
HW1L-M1F10QD-W-24V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED White, 24VAC/DC
$26.21
IDEC
HW1L-M1F10QD-W-240V
Pushbutton, 22mm, Plastic, Round, Flush, White, LED, Momentary, 1NO, 240V, NCNR
$27.28
IDEC
HW1L-M1F10QD-W-12V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED White, 12VAC/DC, NCNR
$26.21
IDEC
HW1L-M1F10QD-W-6V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED White, 6VAC/DC, NCNR
$26.21
