IDEC
HW1L-A2F01QD-A-24V
Pushbutton, 22mm, Plastic, Round, Extended, Ambr, LED, Maintained, 1NC, 24V, NCNR
$34.07
Product image is representative only, please verify specifications.
HW1L-A2F01QD-G-24V
Alt: HW Series, Non-Cancellable, No Returns
$34.07

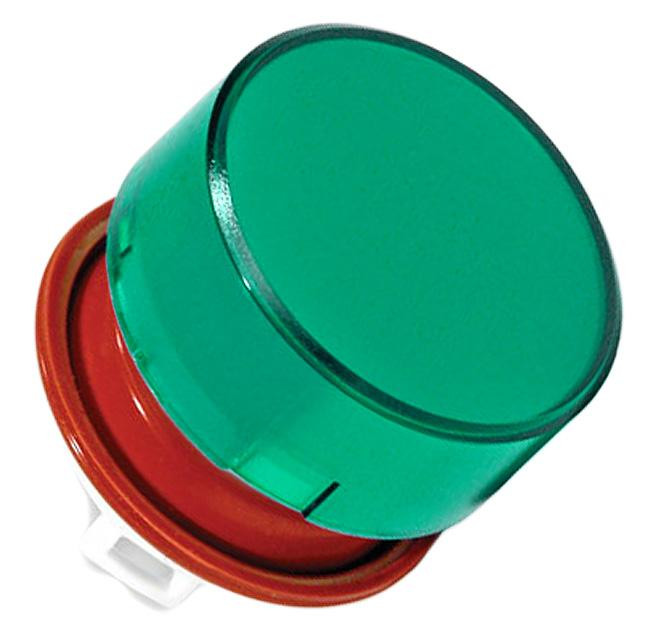

Pushbutton, 22mm, Plastic, Round, Extended, Grn, LED, Maintained, 1NC, 24V, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.
- Space saving with reduced contact block depth
- IP20 finger-safe protection
- High voltage LED for illuminated pushbuttons
- Can be ordered assembled or in components
- Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
- IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40
Series information:
- HWxB: Non-illluminated
- HWxL: Illuminated
- HW1 - Round black bezel
- HW2 - Square black bezel
- HW4 - Round metal bezel
Assembled units:
- Available in momentary (M) or Maintained (A)
- Contact configurations:
- 10: 1NO
- 01: 1NC
- 11: 1NO/1NC
- 20: 2NO
- 02: 2NC
- 22: 2NO/2NC
Features Include:
- Finger safe (IP20) screw terminals standard
- Accept ring, fork or ferrule terminals and bare wires
- All E-Stops meet EN418 (IEC compliant, positive action)
- UL listed, CSA certified, TUV approved, and CE marked
- Super bright incandescent or LED illumination
- UL Type 4X, IP65
- 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
HW1L-A2F01QD-Y-24V
Pushbutton, 22mm, Plastic, Round, Extended, Ylw, LED, Maintained, 1NC, 24V, NCNR
$34.07
IDEC
HW1L-A2F01QD-W-24V
Pushbutton, 22mm, Plastic, Round, Extended, Wht, LED, Maintained, 1NC, 24V, NCNR
$34.07
IDEC
HW1L-A2F01QD-R-24V
Pushbutton, 22mm, Plastic, Round, Extended, Red, LED, Maintained, 1NC, 24V, NCNR
$34.07
IDEC
HW1L-A2F01QD-S-24V
Pushbutton, 22mm, Plastic, Round, Extended, Blue, LED, Maintained, 1NC, 24V, NCNR
$41.16
IDEC
HW1L-A2F01QD-G-6V
Pushbutton, 22mm, Plastic, Round, Extended, Grn, LED, Maintained, 1NC, 6V, NCNR
$34.07
IDEC
HW1L-A2F01QD-G-12V
Pushbutton, 22mm, Plastic, Round, Extended, Grn, LED, Maintained, 1NC, 12V, NCNR
$34.07
IDEC
HW1L-A2F01QD-G-120V
Pushbutton, 22mm, Plastic, Round, Extended, Grn, LED, Maintained, 1NC, 120V, NCNR
$35.15
IDEC
HW4L-A2F01QD-G-24V
Pushbutton, Ø22mm, Metal Bezel, Maintained, Extended, 1NC, Green Lens, 24VAC/DC, HW Series LED Illuminated Round Pushbuttons (Assembled), NCNR
$35.15
