HS35F 05000 H ABZC MI10 B E 100 5 T5
Alt: 11193077
$977.98
HS35F 05000 H ABZC MI10 B E 100 5 T5 Incremental Encoder
- Weight:
- 1.46 LBS
- Minimum Purchase:
- 1 unit
Description

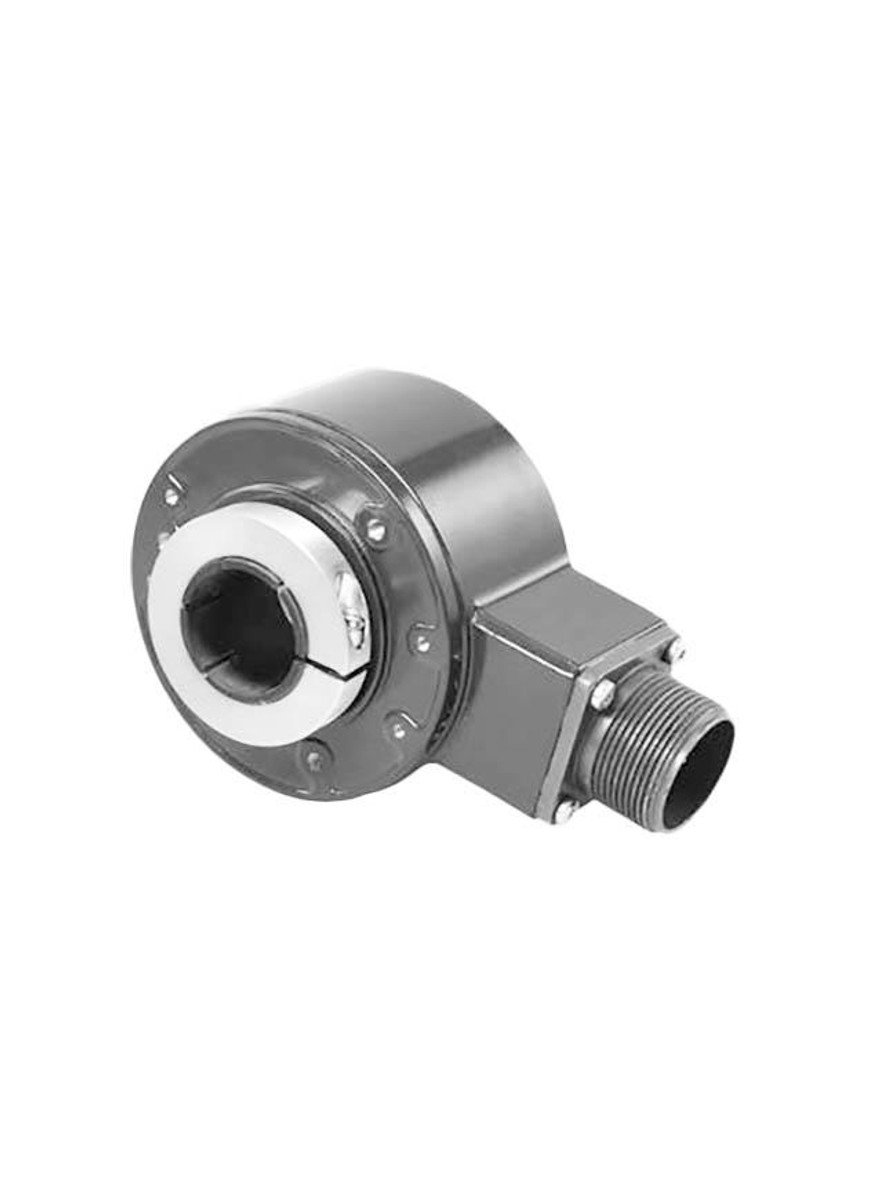

HS35F 05000 H ABZC MI10 B E 100 5 T5 Encoder
Features Include:
- Robust industrial encoder up to IP 67 protection
- Shock resistant up to 200 g's
- Insulating insert to prevent high shaft currents from damaging bearings
- Wide range voltage supply 4.75 - 30 VDC
- Precision ≤60 arc-seconds for perfect process control
- Max. 80000 pulses per revolution
- Operating Temperature: -40 - +212 °F (-40 - +100 °C), (fixed cable)
- Size (flange): ø3.15" (ø80 mm)
- Shaft Type: ø0.375 - 1" (ø9.525 - 25.4 mm) (through hollow shaft isolated)
Consumption without load:
- ≤40 mA (24 VDC)
- ≤130 mA (4.75 VDC) + output load, max. 250 mA
Output Frequency:
- ≤300 kHz (TTL)
- ≤160 kHz (HTL)
- ≤160 kHz (OC)
Output Signals:
- A, B, Z
- A, B, Z + complement, ½ cycle index gated with negative B channel
Output Stages:
- Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof
- Push-pull (HTL, 7272) Vout = Vin, short-circuit proof
- Open Collector (OC, 7273) Vout = Vin, short-circuit proof
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
HS35S-2048-W-ABZC-MI10-E-100-5-T6
Sine Encoder, 2048 Sinewave Cycles/Turn, Voltage Supply: VIN=4.75...30VDC, SinCos 1 Vpp, Output Signal Sine: A+, A-, B+, B-, Z+, Z- (since), Connection: MIL 10-Pin Connector, Operating Temperature: -40° to +212F (-40° to +100°C), Through Ho
$977.98
Weg

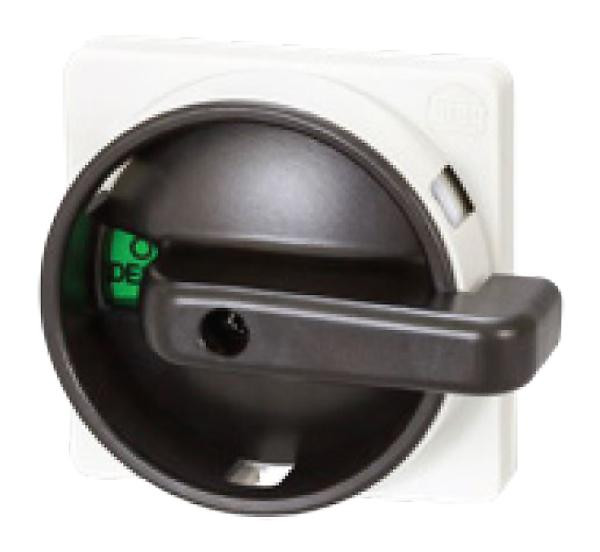

MSW H 100-P-B
Rotary Handle, Through-the-Door, 100A, Panel Mounting, Black and Gray, (No Shaft), MSW Series
$11.10
Baumer

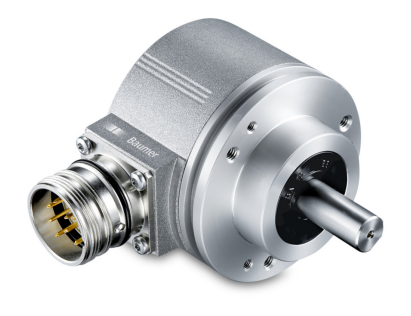

EIL580-SC10.5FE.05000.A
