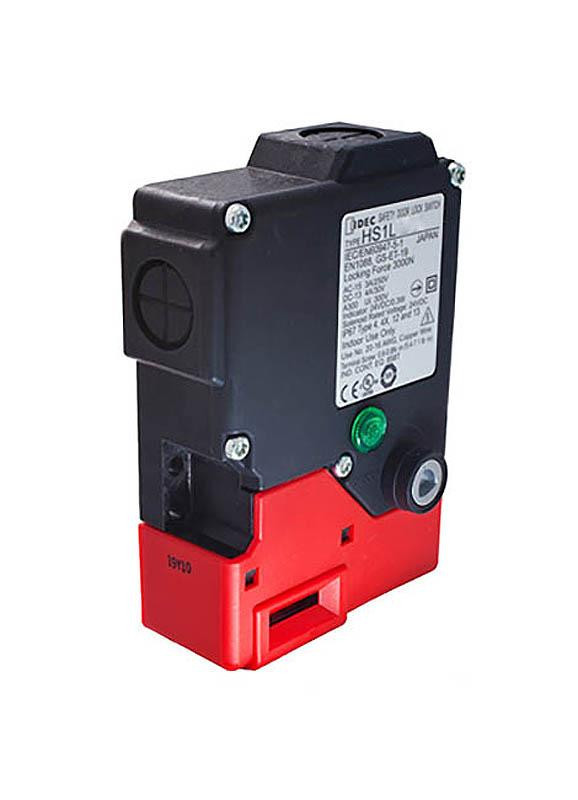

HS1L-DQ44KMSRP-G
IDEC

HS1L-DQ44KMSRP-G

Alt: HS1L Series, Non-Cancellable, No Returns

$198.42

Safety Interlock Switch, Full Size Locking, Heavy Door & Gate, 24VDC, Spring Lock, PG13.5, Green LED, Main Circuit: 1NC+1NC, 1NC+1NC, Door & Lock Monitor Circuit: 1NO, Equipped with Manual Lock-Release Key and LED Indicator , NCNR

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
HS1L is designed to work in applications with large machines that have heavy doors or gates and all models are equipped with a manual lock-release key and an LED indicator.
Description

Our IDEC HS1L is a full-size licking safety interlock kswitch. This series has an increased locking strength of 3,000N and offer six contacts with easy-to-wire termination.

The HS1L is designed to work in applications with large machines that have heavy doors or gates and all models are equipped with a manual lock-release key and an LED indicator.

The indicator is wired independently for added flexibility and use. Screw terminals are also easy to wire. No barriers on the sides of the contact terminal enable wiring from the side making it easier for crimp-terminal connections as well.

Features Include:

  • Lock Method (actuator inserted): Spring lock
  • Unlock Method: Energize solenoid
  • Main Contacts: 2NC+2NC
  • Spring lock type
  • Main circuit: 2NC+2NC
  • Door monitor circuit: 1NO
  • Lock monitor circuit: 1NO
  • PG13.5 Conduit port
  • Green LED indicator
