Product image is representative only, please verify specifications.
4860009100
Alt: iXP2-1500A
$3,108.68
HMI, 15" TFT LCD, 1024x768, 24-bit Color(16.7M), 100-240VAC, Ethernet 2 Channel, IP66
- Weight:
- 11.00 LBS
- Minimum Purchase:
- 1 unit
Description

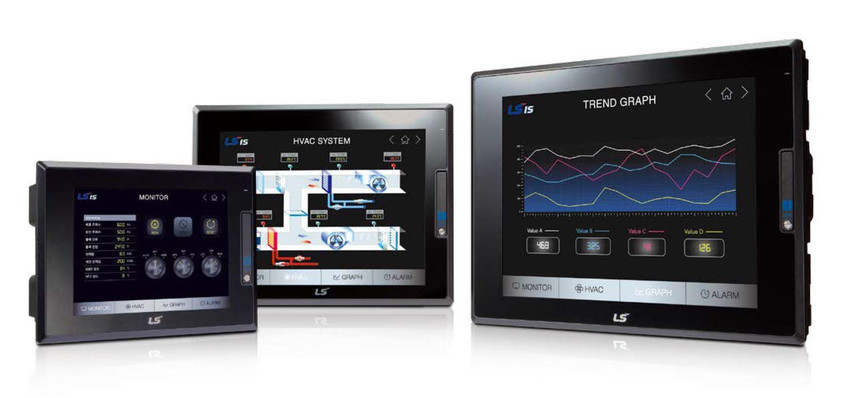

The LS Electric iXP series is a user friendly screen with USB in the front of the panel!
Features include:
- High performance 1GHz CPU, Windows CE 6.0 Professional OS
- Large memory - 128MB for screen and images, 1MB data backup for alarm and logging
- Presence sensor - detects movement within 1m
- 24 bit and vivid colors 16,777,216
- USB in the front of the panel - easily connect to memory, mouse and keyboard!
- Sound output - up to 512 sound files can be saved
- Supports additional SD memory cards
Series Features Include:
- Screen Size: 15"

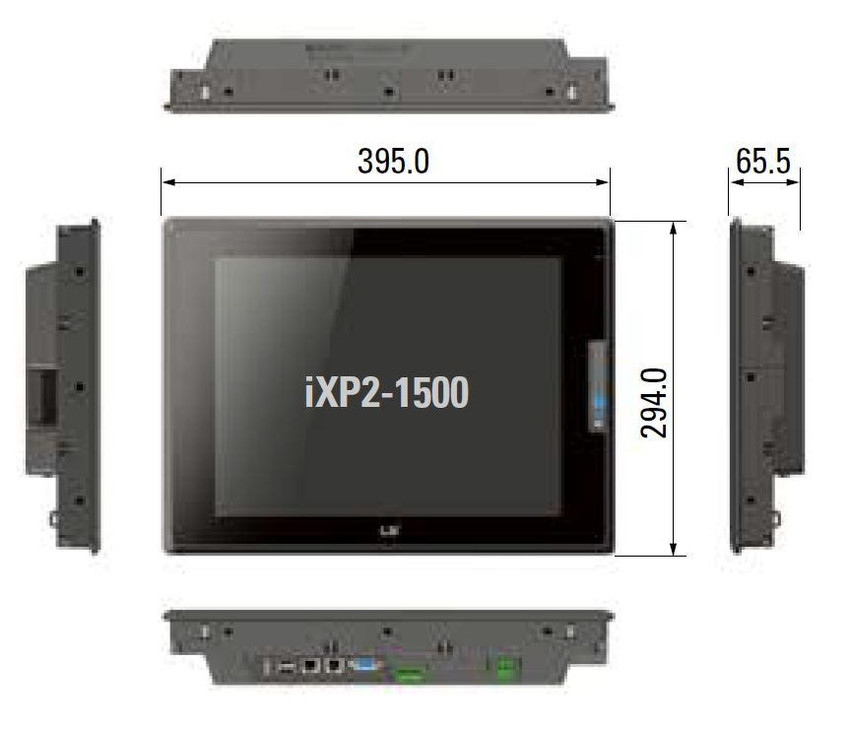

- Dimension (mm): 395.0 x 294.0 x 65.5
- Panel Cut (mm): 383.5 x 282.5
- Power: iXP2-xxxxA : AC100 / 240V, iXP2-xxxxD : DC24V
- Display Resolution: 1024 x 768 pixel
- Color Indication: 24-bit color (16.7M colors)
- Protection standard: IP66, Conform to the UL type 4x, NEMA 4x standard
- Explosion proof: Ex nA IIC T5 Gc, Ex tc IIIC T100℃ Dc IP64
- Backlight lifetime: 50,000 hours
- Touch panel: Capacitive touch
- Audio output: Magnetic Buzzer (85dB)
- Process: 1GHz, Dual-Core CPU
- Backup data: Date / Time data, Logging / Alarm / Recipe data, Non-volatile devices
- Battery: CR2032(3.0V/210mAh, About 3 years/25℃)
- Video Out: 1 x HDMI
- Ethernet: 1 x 10Base-T / 100Base-TX, 1 x 10Base-T / 100Base-TX / 1000Base-T
- USB host: 3 x USB 2.0 (Front x 1, Rear x 2)
- USB device: 1 x USB 2.0 (Send / Receive front, PC and project data etc.)
