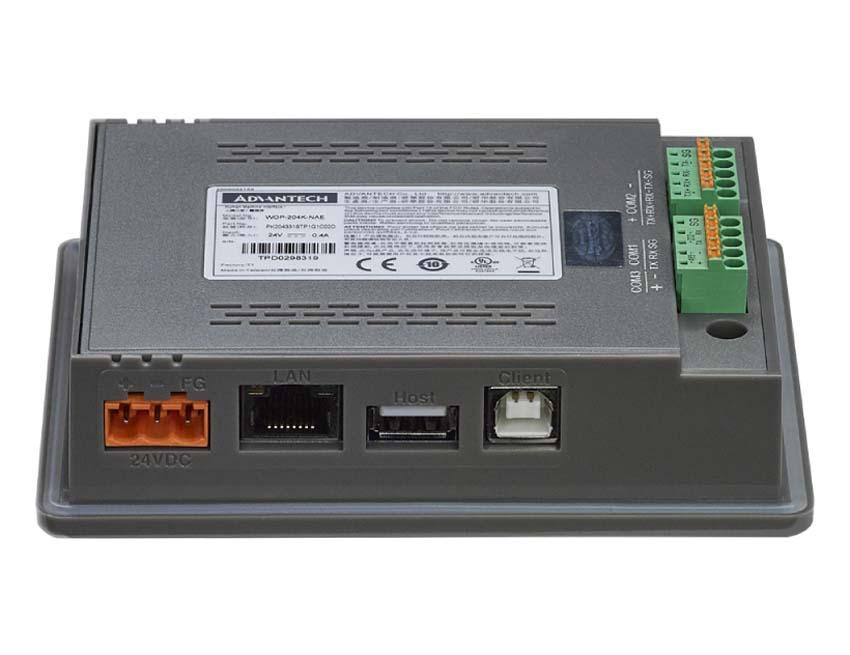

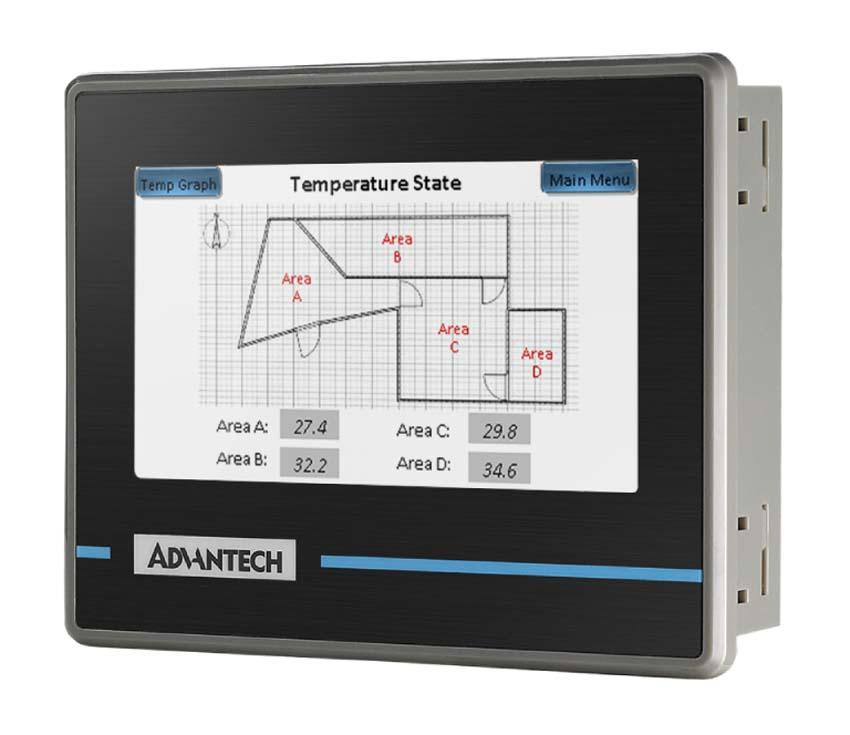

WOP-204K-NAE
Advantech

WOP-204K-NAE

Alt: WOP Series

$312.00

HMI, 4.3" WQVGA Operator Panel Installed with HMI Navi Software, 64MB, 128MB (NAND), Serial x3, Ethernet

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.

Features Include:

  • ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  • Supports over 500+ PLC industrial communication protocols
  • Backup memory 128KB for retaining critical data or parameter
  • Supports the HMINavi Designer development tool free on Windows 10
  • Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  • No limitation on the internal I/Os points used for variety application
  • Easy to switch one application to different LCD sizes in seconds
  • Supports operation in both landscape and portrait mode
  • Panel mount design ensures easy installation and IP66-rated front panel
  • Dimensions (W x H x D): 129 x 103 x 31.3mm (5.08' x 4.06' x 1.23')
  • Cutout Dimensions: 118.5 x 92.5mm (4.67' x 3.64')
  • Power Consumption: 10W
  • Display Type: WQVGA TFT LCD
  • Display Size: 4.3"
  • Max. Resolution: 480 x 272
  • Max. Colors: 65,536 colors
  • Luminance: (cd/m2) 400
  • Touchscreen 4 wires analog resistive
