Available Now! CMT2158X
Available Now! (1 in stock)
Weintek USA

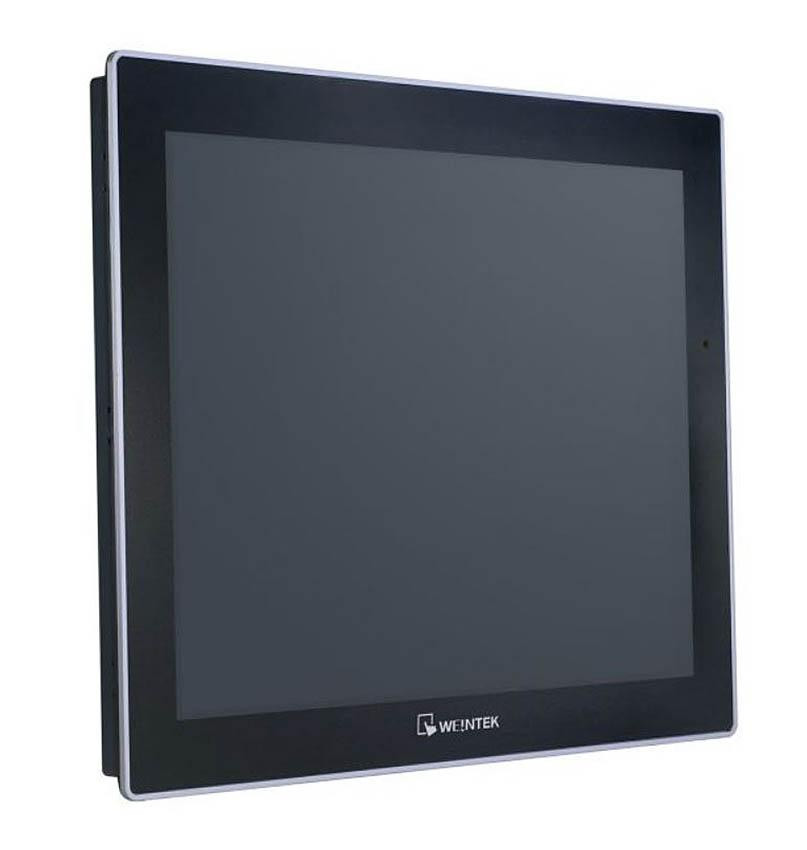

CMT2158X

Alt: cMTX Series - Standard HMI

$1,846.95

HMI, 15", 1024 x 768 Resolution, UL 4X (Indoor), NEMA 4, IP66, 1.6GHz, 1 GB / 4GB, 24VDC +/- 20%, 2 Ethernet Ports, EasyAccess 2.0 Optional to Order Separately, UL Listed, CODESYS Optional to Order Separately, with Quad-Core

Weight:
10.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Weintek is a global HMI manufacturer that continues to develop and design cutting edge HMI options.

Founded in 1996, Weintek 7" and 10" 16:9 touchscreens have become a standard in the industry.

Features Include:

  • 15" 1024 x 768 IPS LCD
  • Quad-core Cortex-A17 CPU with High Performance dedicated 3D Processor
  • Fan-less Cooling System
  • Built- in 4GB Flash Memory and RTC
  • SD Card Slot Supports SD/SDHC Cards
  • COM1 / COM3 RS-485 Built-in Isolation
  • Built-in Power Isolator
  • NEMA4/IP66 Compliant Front Panel
  • USB Host: USB 2.0 x 1
  • Ethernet: LAN 1: LAN 1: 10/100/1000 Base-T x 1, LAN 2: 10/100 Base-T x 1
  • COM Port: Con.A: COM1 RS-485 2W/4W, COM3 RS-485 2W, Con.B: COM1 RS-232 4W, COM3 RS-232 2W*, MPI is not supported
  • Input Power: 24±20%VDC
  • Power Isolation: Built-in
  • Power Consumption: 1.3A@24VDC
  • Voltage Resistance: 500VAC (1 min.)
  • Isolation Resistance Exceed 50MΩ at 500VDC
  • Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
  • PCB Coating: Yes
  • Enclosure: Aluminum

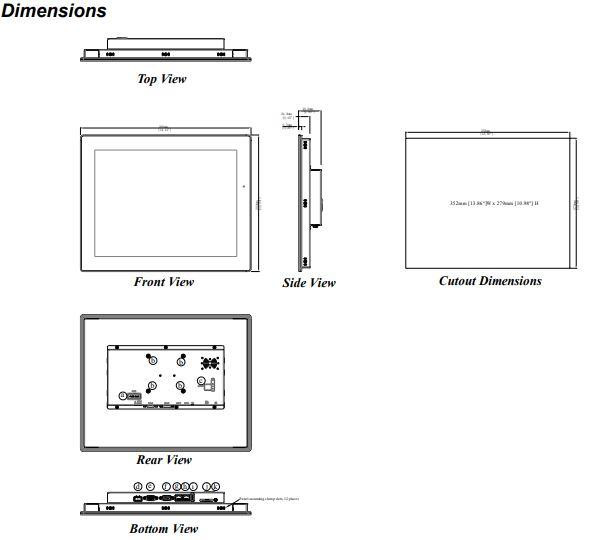

  • Dimensions WxHxD: 366 x 293 x 48.2 mm
  • Panel Cutout: 352 x 279 mm
  • Protection Structure: UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel

Learn more about Weintek here!
