Fuji Electric
V-SFT-6
V-SFT Screen Configuration Software Version 6, DVD, Hakko Software for V8, V9, TS
$157.50
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
V9100IC
Alt: HMI V9 Lite, V9100iC
$1,872.00
HMI, 10.4" VGA TFT, 100-240VAC, 64K Color, SD Card Slot, USB Port Type A & B (Mini), LAN
- Weight:
- 6.00 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
We are happy to announce that we now carry Fuji Electric's line of HMI's:
- MONITOUCH X1 Series
- MONITOUCH HMI V9 Series
- MONITOUCH Technoshot Series
MONITOUCH X1 Series:
- Standard series - features broad FA and IT connectivity and flexibility
- Available in 12.1" or 15.6" Widescreen
- 16.7M Colors
- IP66
- Accessries include V-SFT-6, X1-BT, X1-SS
MONITOUCH HMI V9 Series:
- Includes three options within this series: V9 Lite, V9 Standard and V9 Advanced (designed to replace the V8 series)

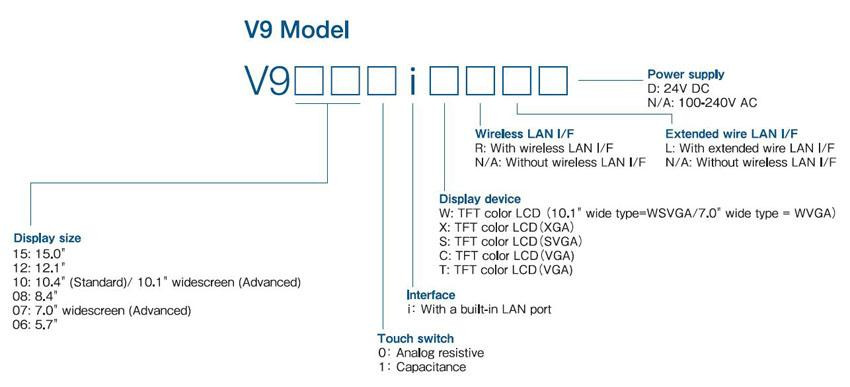

- V9 Lite Part Numbers: V9060iTD, V9080iCD, V9100iC/iCD
- V9 Standard Part Numbers: V9080iSD, V9100iS/iSD, V9120iS/iSD, V9150iX/iXD
- V9 Advanced Part Numbers: V9071iWLD/iWRLD, V9101iWLD/iWRLD
- 5.7" to 15"
- UL Certified
- Standard with onboard Ethernet ports and SD card slots
MONITOUCH Technoshot Series:
- All models come standard with two USB interfaces, simple installation and remote monitoring and maintenance capabilities due to the onbaord Ethernet port.
- TS2060Si: 5.7", TFT QVGA, 64K colors
- TS1070Si: 7", TFT WVGA, 64K colors
- TS1100Si: 10.2", TFT WVGA, 65K colors
Specifications
Alternate Part Number
HMI V9 Lite, V9100iC
Series
MONITOUCH HMI V9
Size
Rectangular
Type of Product
Touchscreen
Warranty
3 Years
Weight
6
Features Include:
- Allows remote connection via VNC
- Storage capacity, communication ports
- FTP protocol, One SD card slot provided as standard
- Screen configuration software V-SFT with free updates available online
- Modbus RTU and TCP communication and Master/clave configuration possible
- V-SFT software: a single software to configure all the models in the range
- Rated voltage: 100-240V AC/ 24V DC, AC: -15%, +10%/ DC: ±10%
- Demand (maximum rating): AC: 50VA or less/ DC: 17W or less
- Ambient temperature: 0～50℃

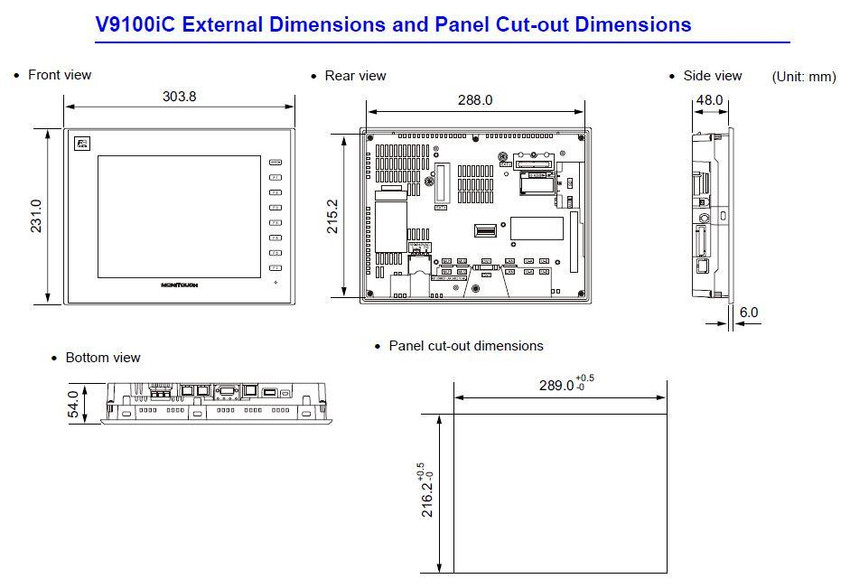

- Dimensions W*H*D(mm): 303.8×231.0×54.0
- Case color: Light gray
- Material: PC resin
- Display device: TFT color LCD
- Resolution: 640×480
- Display size: 10.4″
- Colors: 16.7 million
- Backlight: LED
Downloads
- Fuji Monitouch V9 Series Programmable Operator Interface Brochure
- Fuji Monitouch V9 Series Programmable Operator Interface Catalog
- Fuji Monitouch V9 Series Operation Manual
- Fuji Monitouch V9 Series Setup Manual
- Fuji Monitouch V9 Series Training Manual Beginner's Guide
- Fuji Monitouch V9 Series Training Manual Practical Guide
- Fuji Monitouch V9 Series Troubleshooting / Maintenance Manual
- Fuji Monitouch V9 Series Reference Manual (1)
- Fuji Monitouch V9 Series Reference Manual (2)
- Fuji Monitouch V9 Series Macro Reference
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$20.31
$585.00
$369.00
$675.00
$99.00
$202.50
$517.50
$508.50
$337.50
$157.50
$36.00
