12480112009
Alt: 124 8011 2009, PKS 3042
Heat Exchangers, Air-to-Air, 22W°C/12 W°F, 115VAC, NEMA 3R/4/4X/12, 1,400 BTU/Hr, Single Phase, Stainless Steel
- Weight:
- 17.00 LBS
- Minimum Purchase:
- 1 unit

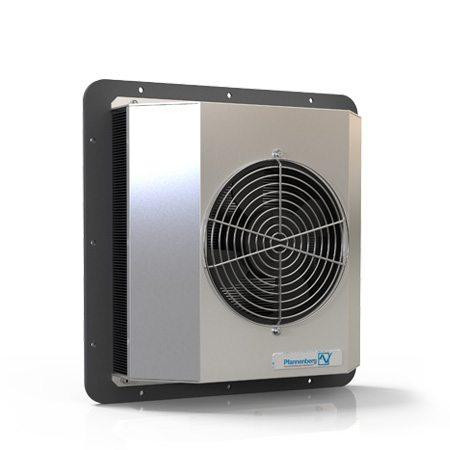

The PKS 3000 series of air/air heat exchangers exchange and remove heat from an electrical enclosure. They are energy efficient, low maintenance (only the fan will ever have to be replaced) and so lightweight that one person can install it.
An air/air heat exchanger removes heat from inside of the enclosure to the cooler environment using the least amount of energy while still providing a closed loop ingress protection.
The PKS 3000's air to air technology takes advantage of a cooler ambient environment - saving you on energy.
Features Include:
- Frequency: 50/60 Hz
- Power Consumption: 82 W
- Current Consumption: 0.72 Amps
- Specific Cooling Capacity (W/°C) / (W/°F): 22 / 12

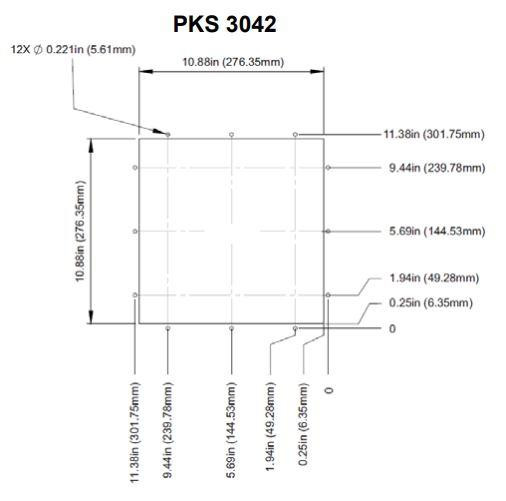

- Dimensions (W x D x H in): 12 x 7.89 x 12
- Weight lb (kg) (without packaging): 17 lbs / 7.7 kg
- Ambient Temperature Range: Min: -13°F - +131°F / -25°C - +55°C
- Control Range: 20°C to 60°C (68°F to 140°F); Factory Setting 35°C (95°F)
- Design: Mounting Plate: powder coated aluminium; Cover: 316 Stainless Steel
