12480933005
Alt: 124 8093 3005, PKS 3363
Heat Exchangers, Air-to-Air, 180W°C/100W°F, 460VAC, NEMA 3R/4, 12,200 BTU/Hr, Single Phase, Galvanized Steel RAL7035
- Weight:
- 70.00 LBS
- Minimum Purchase:
- 1 unit

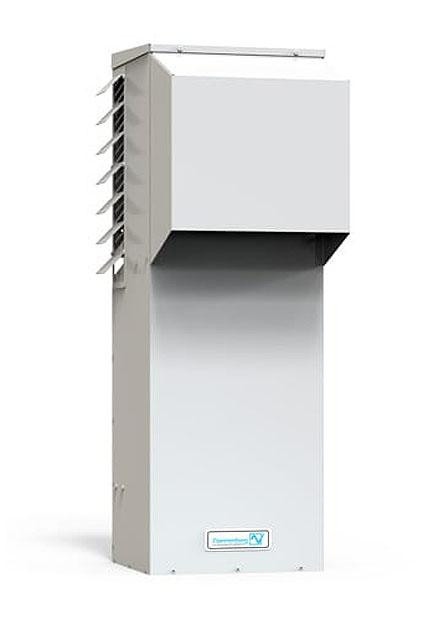

The PKS 3000 series of air/air heat exchangers exchange and remove heat from an electrical enclosure. They are energy efficient, low maintenance (only the fan will ever have to be replaced) and so lightweight that one person can install it.
An air/air heat exchanger removes heat from inside of the enclosure to the cooler environment using the least amount of energy while still providing a closed loop ingress protection.
The PKS 3000's air to air technology takes advantage of a cooler ambient environment - saving you on energy.
Features Include:
- Frequency: 50/60 Hz
- Power Consumption: 245 W
- Current Consumption:<1 Amps
- Specific Cooling Capacity (W/°C) / (W/°F): 180 / 100

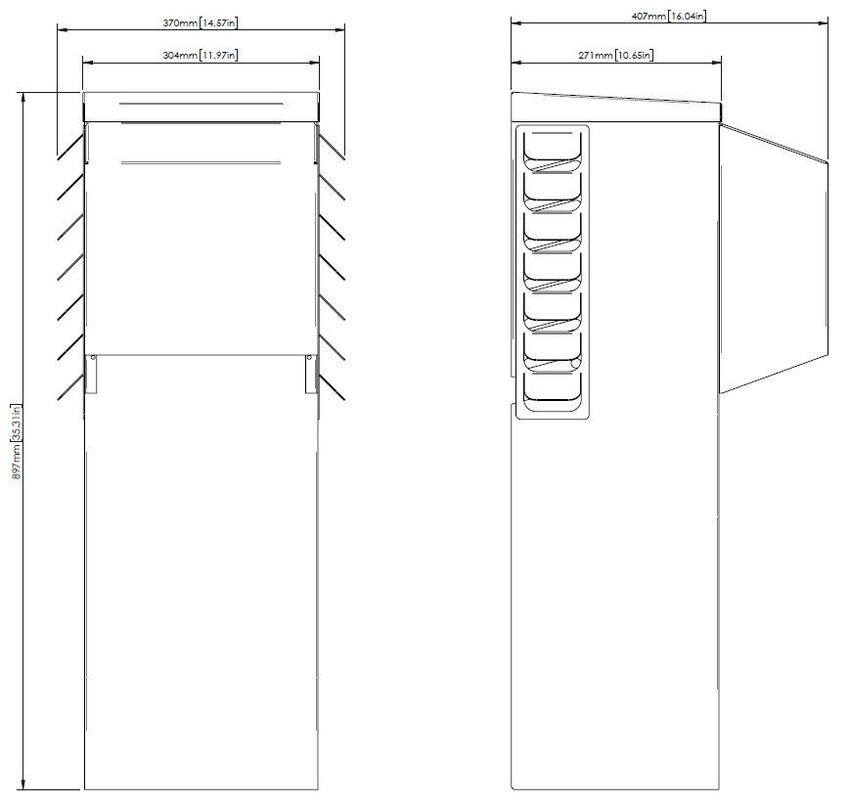

- Dimensions (W x D x H in): 12 x 11 x 35
- Weight lb (kg) (without packaging): 70 lbs / 31.7 kg
- Ambient Temperature Range: Min: -13°F - +131°F / -25°C - +55°C
- Refrigerant Type: R 134a
- Control Range: 20°C to 60°C (68°F to 140°F); Factory Setting 35°C (95°F)
- Design: Housing & Cover: powder coated RAL 7035 (light grey)
