12480814008
Alt: 124 8081 4008, PKS 3304
Heat Exchangers, Air-to-Air, 150W°C/83W°F, 115VAC, NEMA 4/4X, 10,200 BTU/Hr, Single Phase, Stainless Steel
- Weight:
- 60.00 LBS
- Minimum Purchase:
- 1 unit
The PKS 3000 series of air/air heat exchangers exchange and remove heat from an electrical enclosure. They are energy efficient, low maintenance (only the fan will ever have to be replaced) and so lightweight that one person can install it.
An air/air heat exchanger removes heat from inside of the enclosure to the cooler environment using the least amount of energy while still providing a closed loop ingress protection.
The PKS 3000's air to air technology takes advantage of a cooler ambient environment - saving you on energy.
Features Include:
- Frequency: 50/60 Hz
- Power Consumption: 345 W
- Current Consumption:<3 Amps
- Specific Cooling Capacity (W/°C) / (W/°F): 150 / 83

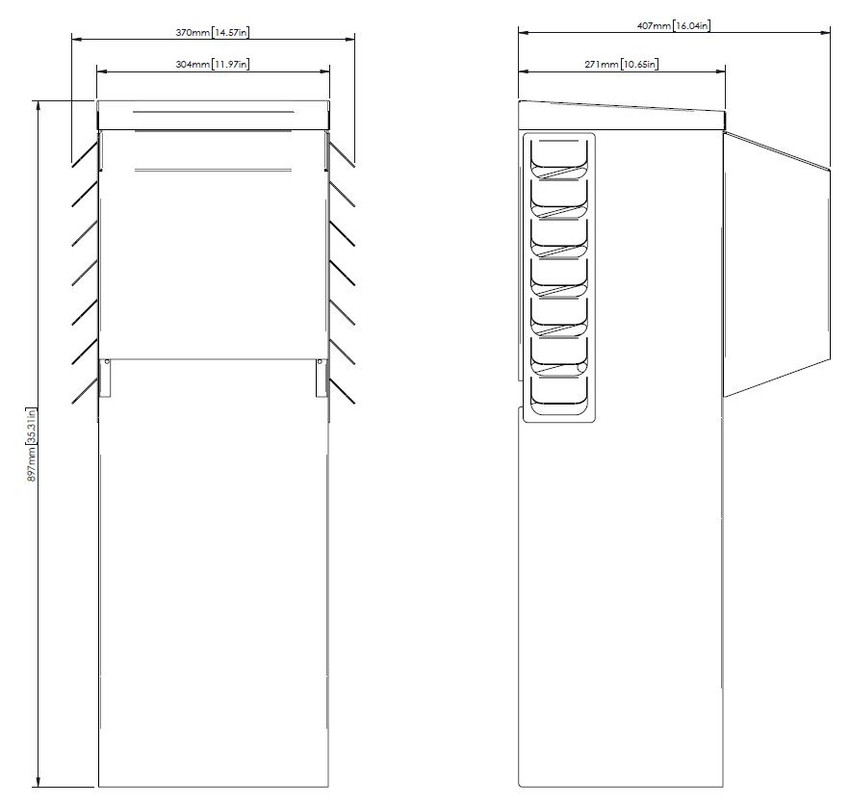

- Dimensions (W x D x H in): 12 x 11 x 35
- Weight lb (kg) (without packaging): 60 lbs / 27 kg
- Ambient Temperature Range: Min: -13°F - +131°F / -25°C - +55°C
- Refrigerant Type: R 134a
- Control Range: 20°C to 60°C (68°F to 140°F); Factory Setting 35°C (95°F)
- Design: Housing & Cover: 304 stainless steel
