Alt: 124 8053 1005, PKS 3201

$3,053.25

Heat Exchangers, Air-to-Air, 100W°C/56W°F, 460VAC, NEMA 12, 6,800 BTU/Hr, Single Phase, Galvanized Steel RAL7035

Weight:
51.70 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Ideal when the ambient temperature is lower than the target temperature inside the electrical enclosure!
Description

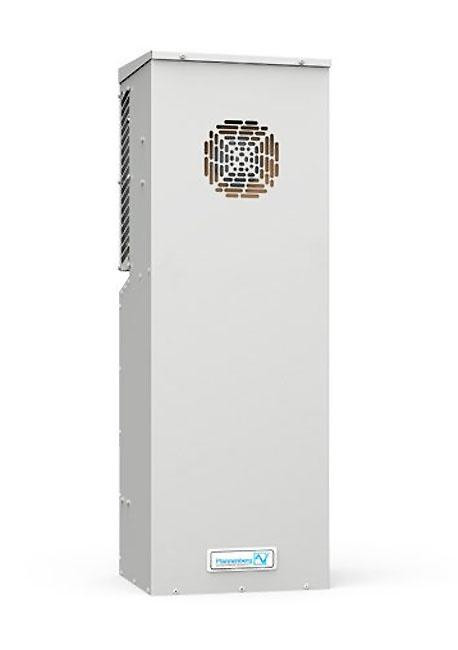

The PKS 3000 series of air/air heat exchangers exchange and remove heat from an electrical enclosure. They are energy efficient, low maintenance (only the fan will ever have to be replaced) and so lightweight that one person can install it.

An air/air heat exchanger removes heat from inside of the enclosure to the cooler environment using the least amount of energy while still providing a closed loop ingress protection.

The PKS 3000's air to air technology takes advantage of a cooler ambient environment - saving you on energy.

Features Include:

  • Frequency: 50/60 Hz
  • Power Consumption: 75 W
  • Current Consumption:<1 Amps
  • Specific Cooling Capacity (W/°C) / (W/°F): 100 / 56
  • Dimensions (W x D x H in): 12 x 11 x 35
  • Weight lb (kg) (without packaging): 47 lbs / 21.3 kg
  • Ambient Temperature Range: Min: -13°F - +131°F / -25°C - +55°C
  • Refrigerant Type: R 134a
  • Control Range: 20°C to 60°C (68°F to 140°F); Factory Setting 35°C (95°F)
  • Design:  Housing & Cover: powder coated RAL 7035 (light grey)
