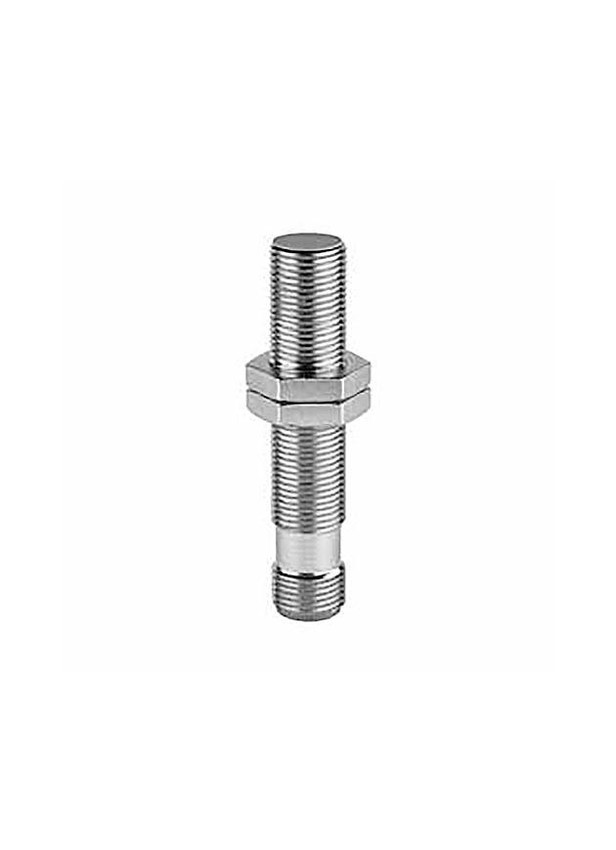

MHRM 12G5501/S14
Alt: 10146622, This is the Suggested Alternative for IHRM 12P1501/KS34P (10132023)
$301.14
Hall Effect Rotational Speed Sensor, Ferromagnetic Gear Material, 8-28VDC, Push-Pull, 12-60mm, Connector, Brass Nickel Plated Housing, PBTP Sensing Face, -40 to +85°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Hall Effect Rotational Speed Sensor
Features Include:
- Sensor type: Hall sensor
- Working distance max.: <0,7 mm (module 1), <2,4 mm (module 3)
- Min. gear size: > module 1
- Gear width: > 6 mm
- Gear material: ferromagnetic
- Switching frequency range: 0 - 15 kHz
- Voltage supply range +Vs: 8 - 28 VDC
- Current consumption max. (no load): 20 mA
- Output A: Push-pull
- Output B: None
- Output current: < 30 mA
- Voltage drop Vd: < 5 VDC
- Type: Cylindrical threaded
- Housing material: Brass nickel plated
- Dimension: 12 mm
- Housing length: 60 mm
- Connection types: Connector
- Material (sensing face): PBTP
Technical Information:
