USCC3I
Alt: USC Series

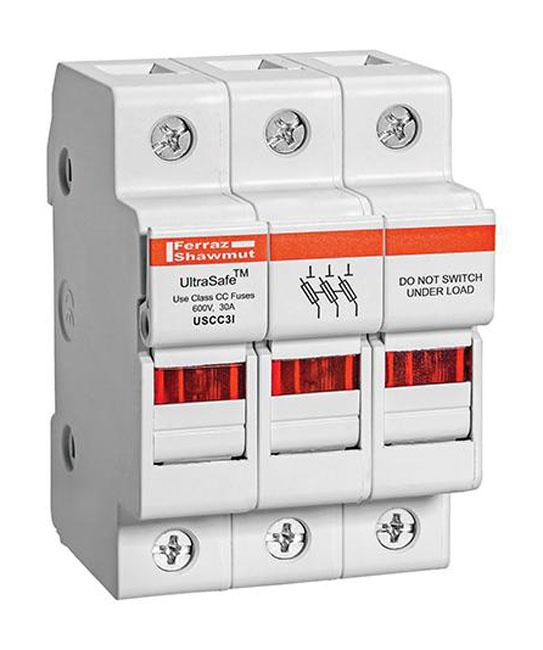

Fuseholder, 600V, 30A, Class CC, 3-Pole, Light Indicator, Minimum Order of 4 (per Pack), Price per Piece
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 4 units
Mersen UltraSafe Modular Fuse holders offer a new level of safety for Class CC (USCC) and Midget 1-1/2" x 13/32" (USM) AC and DC rated fuses up to 30 amps.
UltraSafe holders qualify as fingersafe under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger).
UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multi-pole units can also be field assembled by ordering pin-tie handles.
UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe holders with Class CC fuses chosen for Type “2” No Damage protection give one of the safest protection packages in the industry.
UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Features Include:
