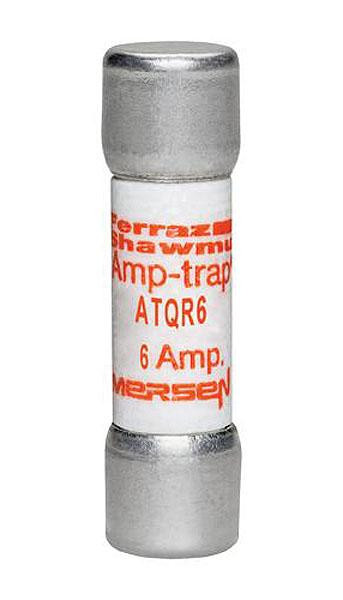

ATQR6
Alt: Reference No. T212698
$20.48
Fuse, Class CC, Transformer Duty, 600V, 6A, Minimum Order of 10 (per Pack), Price per Piece
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 10 units
Description
The ATQ series are midget time-delay relays that are rated 500VAC with amp ratings available from 1/10 to 30 amp.
The Amp-Trap ATQ series from Mersen is a great choice for supplemental circuit protection where available short circuit current does not exceed 10,000 amps. These are not designed for branch circuit protection.
Additoinal information:
- Numerous ratings for a wide variety of applications up to 500VAC
- Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current
- Can be used with UltraSafe™ Fuse holders
- 1 1/2" x 13/32" (10 mm x 38 mm) dimensions
Specifications
Alternate Part Number
Reference No. T212698
Amp Rating
6 Amp
Poles
See Spec or N/A
Series
ATQ Series
Options
No Special Options
Warranty
1 Year
Weight
0.1
Fuse Class
Class CC (Midget)
Type of Product
Fuses
Features Include:
- Rated Voltage AC UL: 600 V
- Rated Voltage DC UL: 300 V
- Amp Rating: 6 A
- ROHS Compliant: Yes
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Mounting: Clip
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Body/Insulating Material: GMG
- Diameter: 0.41 in
- Length: 1.5 in
