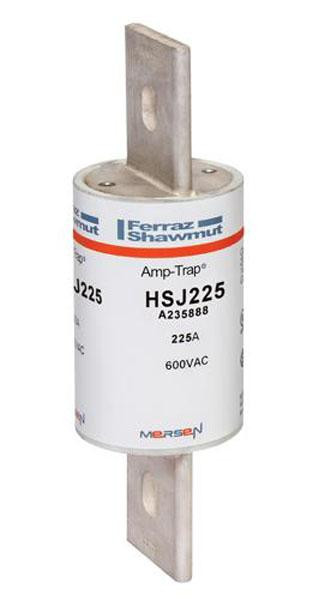

HSJ225
Alt: HSJ Series
$366.05
Fuse, Amp-Trap, 600VAC/500DC, 225A, UL/CSA Listed, High Speed Class J, Optimized Overload Capability
- Weight:
- 1.89 LBS
- Minimum Purchase:
- 1 unit
Description
Mersen is a global manufacturer of low voltage fuses, fusegear and power distribution blocks.
You might recognize the names Gould Shawmut or Ferraz Shawmut... Gould Shawmut was acquired in 1999 and became Ferraz Shawmut. By 2010 Ferraz Shawmut changed their official corporate name to Mersen.
Features Include:
- Rated Voltage AC UL: 600 V
- Rated Voltage DC UL: 500 V
- Amp Rating: 225 A
- Fuse Class: Class J
- Speed/Characteristic: High Speed
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Connection/Terminal Material: Brass
- Connection/Terminal Type: Blade
- Body/Insulating Material: GMG
- Product Weight: 1.8 lb
- Product Diameter: 2.12 in
- Product Length: 7.13
- Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
- Low I2t (low thermal energy)
- Excellent cycling ability for frequent starts/stops without nuisance opening
