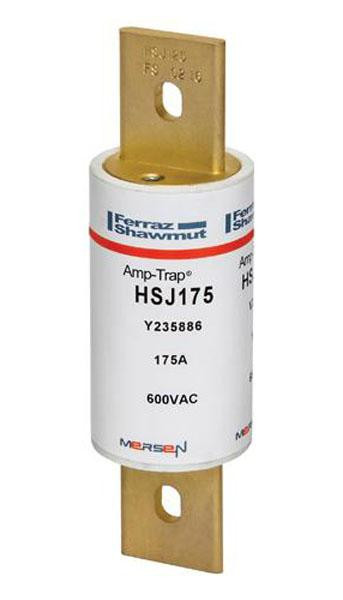

Mersen
HSJ175
Fuse, Amp-Trap, 600VAC/500DC, 175A, UL/CSA Listed, High Speed Class J, Optimized Overload Capability
$215.31
HSJ17-1/2
Alt: 10 Piece Minimum Order (Price per Piece)
$30.76
Fuse, Amp-Trap, 600VAC/500DC, 17.5A, UL/CSA Listed High Speed Class J, Optimized Overload Capability, Minimum Order of 10 (per Pack), Price per Piece
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 10 units
Description
Mersen is a global manufacturer of low voltage fuses, fusegear and power distribution blocks.
You might recognize the names Gould Shawmut or Ferraz Shawmut... Gould Shawmut was acquired in 1999 and became Ferraz Shawmut. By 2010 Ferraz Shawmut changed their official corporate name to Mersen.
Specifications
Alternate Part Number
10 Piece Minimum Order (Price per Piece)
Amp Rating
17.5 Amp
Poles
See Spec or N/A
Series
HSJ Series
Options
No Special Options
Warranty
1 Year
Weight
0.25
Fuse Class
Class J
Type of Product
Fuses
Features Include:
- Rated Voltage AC UL: 600 V
- Rated Voltage DC UL: 500 V
- Amp Rating: 17.5 A
- Fuse Class: Class J
- Speed/Characteristic: High Speed
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Body/Insulating Material: GMG
- Product Weight: 0.12 lb
- Product Diameter: 0.81 in
- Product Length: 2.25
- Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
- Low I2t (low thermal energy)
- Excellent cycling ability for frequent starts/stops without nuisance opening
