ATDR10
Alt: Reference No. J201396
$15.39

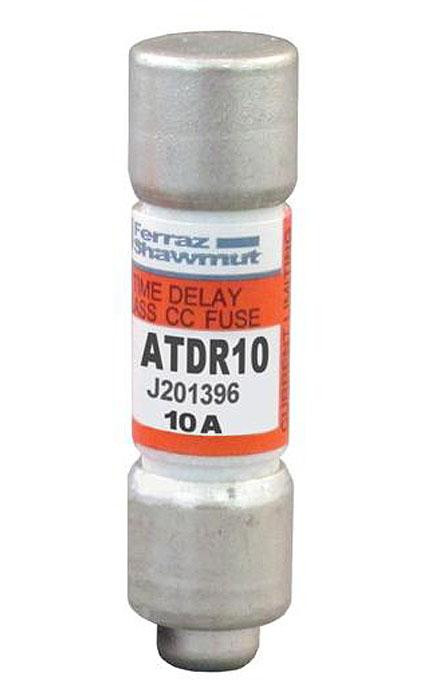

Fuse, Amp-Trap, Class CC, Motor Duty, 600V, 10A, IEC Type 2, Minimum Order of 10 (per Pack), Price per Piece
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 10 units
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Mersen ATDR series provides IEC 'no damage' protection to sensitive branch circuit components and small motors. This series has excellend cycling abillity for small motor loads!
Ideal for small motors, contactors, lighting, heating and branch circuit protection.
Specifications
Alternate Part Number
Reference No. J201396
Amp Rating
10 Amp
Poles
See Spec or N/A
Series
ATDR Series
Options
No Special Options
Quantity
10
Warranty
1 Year
Weight
0.1
Type of Product
Fuses
Fuse Class
Class CC (Midget)
Features Include:
- Rated Voltage AC UL: 600 V
- Rated Voltage DC UL: 300 V
- Amp Rating: 10
- ROHS Compliant: Yes
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Mounting: Clip
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Body/Insulating Material: GMG
- Diameter: 0.41 in
- Length: 1.5 in
