Baumer

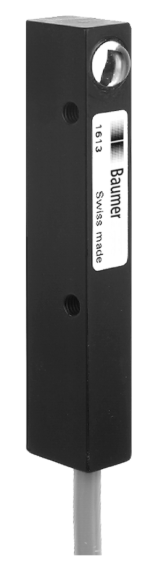

FSDM 08D9001
Sensor, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added
$211.42
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
FSDM 08D9001/S35
Alt: 10233485, *Includes Tariff
$195.61
Photoelectric sensor, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Specifications
Alternate Part Number
10233485, *Includes Tariff
Connection
M8, Straight
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
Through Beam
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP65
Size
8mm
Warranty
3 Years
Series
FSDM
Weight
.5
Features Include:
- Type: through beam sensor
- Emitter / receiver: emitter
- Light source: pulsed infrared diode
- Actual range Sb: 0.7 m
- Nominal range Sn: 1 m
- Wave length: 880 nm
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 48 mA
- Current consumption typ.: 17 mA
- Reverse polarity protection: yes
- Width / diameter: 8 mm
- Height / length: 58 mm
- Depth: 12 mm
- Housing material: aluminum anodized
- Front (optics): PC
- Connection types: connector M8, 3 pin
- Operating temperature: -25 - +65 °C
- Protection class: IP 65
