$219.00
FSDK 10D9601/S35A
Alt: 10131282
$204.00

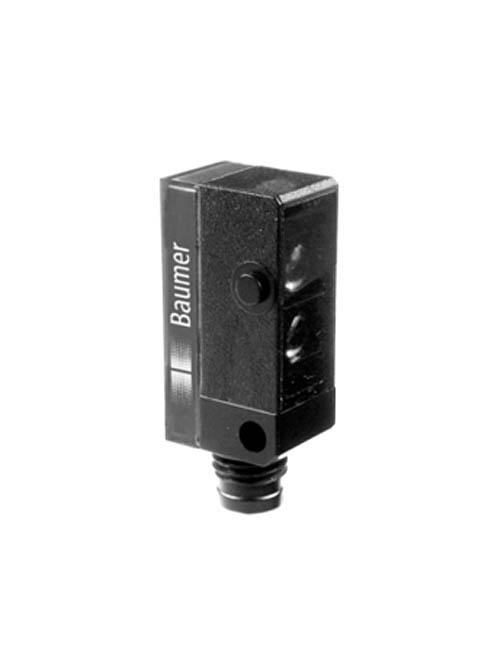

Photoelectric sensor
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Features Include:
- Type: through beam sensor
- Emitter / receiver: emitter
- Light source: pulsed red LED
- Actual range Sb: 5 m
- Nominal range Sn: 6 m
- Wave length: 660 nm
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 23 mA
- Current consumption typ.: 15 mA
- Reverse polarity protection: yes
- Width / diameter: 10.4 mm
- Height / length: 27 mm
- Depth: 14 mm
- Housing material: plastic (ASA)
- Front (optics): PMMA
- Connection types: connector M8 4 pin
- Operating temperature: -25 - +65 °C
- Protection class: IP 67
