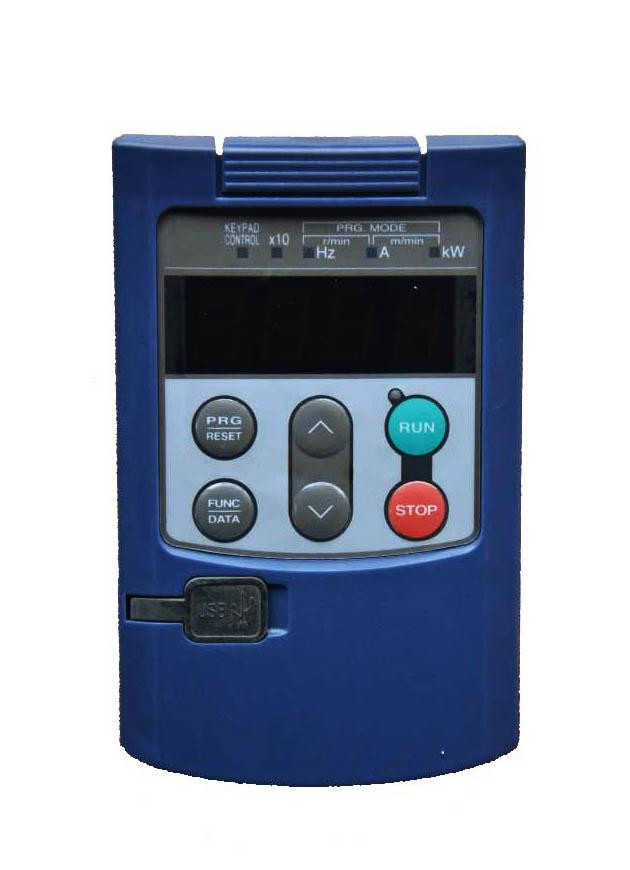

Fuji Electric
TP-E1U
USB-Equipped Remote Keypad, Use with Frenic-MINI, -MEGA or -ACE, IP40, Indoor Use Only
$62.48
Product image is representative only, please verify specifications.
FRN300G1S-4U
Alt: FRENIC-Mega Series
$15,276.88
VFD, 300hp, 460V, 3 Phase, For Constant and Variable Torque Apps
- Weight:
- 465.75 LBS
- Minimum Purchase:
- 1 unit
Description
FRENIC-Mega is a high performance, multifunctional drive with the following control methods; PG vector control, sensorless vector control, dynamic torque vector control, PG closed-loop control and V/f control.
RS-485 communication is standard along with a RJ-45 connection port.
Two types of keypads are available:
- TP-G1W-J1; Multifunction keypad
- TP-E1U (Optional): Keypad with USB port
Series Features Include:
Control Inputs/Outputs:
- Qty 9 digital inputs
- Qty 2 safety inputs (dedicated)
- Qty 3 analog inputs
- Qty 6 digital outputs; Qty 2 relays (1 Form C & 1 Form A) & Qty 4 transistor, 56 selectable functions
- Qty 2 analog outputs; selectable type; 0 to 10VDC or 4 to 20mA configurable to provide output signal proportional to 15 different functions
- Qty 2 RS-485 connections
- RJ45 keypad port & control terminal block connections
- 24VDC output terminal rated 100mA
- High Performance LED & LCD keypad with NEMA/UL type approved
Motor Control:
- LD (Low Duty): 120% for 1 Min
- MD (Medium Duty): 150% for 1 Min
- HD (High Duty): 200% for 3s / 150% for 1 Min
- High performance closed loop vector control with option card
- High performance sensor-less vector control
- Built-in braking transistor up to 40HP(LD)/30HP(HD)
- Built in braking resistor up to 15HP(LD)/10HP(HD)
- Single phase input for all models
Safety and Standard:
- Safety input compliant with EN ISO13849-1, EN954-1, Category 3
- UL508C, CE
- UL Premium Rating
- NEMA/UL Type 1 by Option Kit
Technical Information:
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Datasheet
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Brochure
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Catalog
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter User Manual
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Instruction Manual
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Instruction Manual Supplement
- Fuji FRENIC-MEGA Quick Start Guide
- Fuji FRENIC-MEGA General Specifications
- Fuji FRENIC-MEGA Engineering Specifications
- Fuji FRENIC-MEGA Watts Loss Data
- Fuji FRENIC-MEGA Drive Efficiency Data
- Fuji FRENIC-MEGA Demo Kit Brochure
Option Card and Communication Manuals:
- Fuji Analog Input/ Output card OPC-G1-AIO Instruction Manual
- Fuji Digital Input / Output Interface Card OPC-G1-DI / OPC-G1-DO Instruction Manual
- Fuji I/O card 115V input OPC-115V Instruction Manual
- Fuji PG Interface Card OPC-G1-PG Instruction Manual
- Fuji PG Interface Card 5V Line Driver OPC-G1-PG2 Instruction Manual
- Fuji PG Interface Card 5V Line Driver OPC-G1-PG22 Instruction Manual
- Fuji PG Interface Card OPC-G1-PG/PG22 Synchronous Operation Instruction Manual
- Fuji Relay Card OPC-G1-RY Instruction Manual
- Fuji RS-485 User Manual
- Fuji Supplement to RS-485 User Manual
- Fuji Inverter Support Software FRENIC Loader 3.3 Instruction Manual
- Fuji OPC-PRT2 PROFINET IO Interface Brochure
- Fuji OPC-PRT2 PROFINET IO Interface User Manual
- Fuji CC Link Interface Option OPC-G1-CCL Instruction Manual
- Fuji CANopen Communications Card OPC-G1-COP Instruction Manual
- Fuji DeviceNet Communications Card OPC-G1-DEV Instruction Manual
- Fuji Profibus DP Interface Option OPC-G1-PDP Instruction Manual
- Fuji T-Link Comm Card OPC-G1-TL Instruction Manual
Brakes, Keypads and Accessories Manuals:

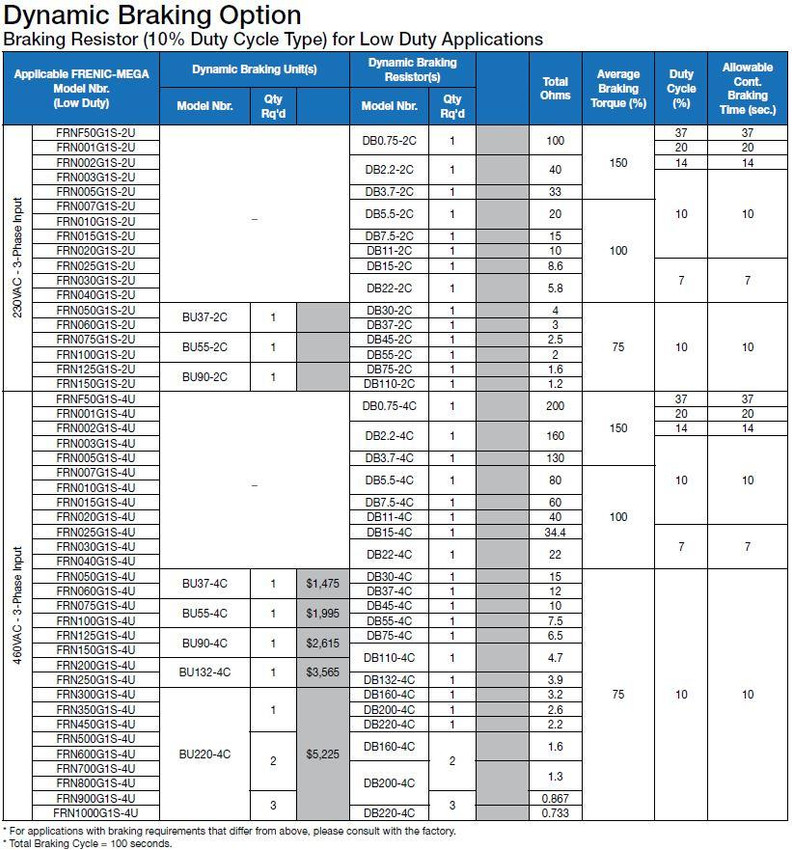

- Fuji Dynamic Braking Resistor Up to 30Hp Instruction Manual
- Fuji Dynamic Braking Unit Instruction Manual
- Fuji Dynamic Braking Unit & Dynamic Braking Resistor 40Hp and up Instruction Manual
- Fuji Multi-Function Keypad TP-G1-J1 Instruction Manual
- Fuji Remote Keypad TP-E1U Installation Manual
Application Notes:
- Fuji FRENIC 5000 P11S/G11S to MEGA Cross Reference
- Fuji Line Voltage Quality Can Damage the DC Link Contactor Technical Bulletin
- Fuji Pump Jack Drive Application Notes
- Fuji Considerations When Using Mega with NEMA-1 Kit Application Notes
- Fuji Internal Braking Unit Ratings Application Notes
- Fuji Three-Wire Start/Stop Wiring and Function Codes Application Notes
- Fuji Pre-Set Speed Operation Wiring and Function Codes Application Notes
- Fuji USB to RS-485 Converter Usage Application Notes
- Fuji PID Control with Pressure Transducer Wiring and Function Codes Application Notes
- Fuji Use of DC Link Reactor for Larger HP Rated Drives Application Notes
- Fuji Automatic Restart after Power Failure Application Notes
- Fuji HAND–OFF–AUTO Switch Wiring Setup and Parameters Application Notes
- Fuji RS-485 Data Format 12 Procedure Application Note
- Fuji MEGA Common DC Bus Single AC Powered Drive Application Note
- Fuji MEGA Common DC Bus All Drives Powered Application Note
- Fuji Mega Overvoltage Avoidance Application Note
- Fuji H-O-A with PID and a Potentiometer Application Note
- Fuji FRENIC-MEGA “Next Generation Variable Frequency Drives” White Paper
- Fuji Low Voltage AC Drives Selection Guide
- Fuji Surge Protection Information for AC Drives Technical Bulletin
- Fuji Cost of Downtime Infographic Flyer
