FRN015F1S-4U
Alt: FRENIC-Eco Series
$1,278.40
VFD, 15hp, 460V, 3 Phase, Variable Torque, Fan and Pump Drive
- Weight:
- 17.55 LBS
- Minimum Purchase:
- 1 unit
Description
In 1976, Fuji was the first in the industry to develop general purpose inverters! They helped expand in a number of fields based on their energy saving capabilities.
Today we are an authorized distributor for Fuji variable frequency drives, temperature controllers and HMI. Their FRENIC- line of VFDs are known for their high quality and the ability to suit a wide variety of application needs.
Product Features Include:
Input Ratings:
- Input Main Power Supply: 3 Phase, 380-480V, 50/60Hz
- Input Auxiliary Control Power Input: Single-Phase, 380 to 480V, 50/60Hz
- Voltage/Frequency Variations: Voltage: +10 to -15% (Voltage unbalance 2% or less) *9, Frequency: +5 to -5%
- Rated Input Current (A): With DCR: 17.7, Without DCR: 27.7
- Required Power Supply Capacity (kVA): 15
Output Ratings:
- Rated Output Capacity (kVA): 18
- Rated Voltage: 3 Phase, 380-480V (with AVR function)
- Rated Output Current (A): 23
- Overload Capability: 120% of rated current for 1 minute
General Specifications:
- Torque (%): 20.0
- DC Injection Braking: Starting Frequency: 0.0 to 60.0Hz, Braking Time: 0.0 to 30.0s, Braking Level: 0 to 60%
- Enclosure: IP20, UL open type
- Cooling Method: Fan Cooling
Technical Information:
- Fuji FRENIC-Eco Variable Torque Load Inverters for Fans and Pumps Brochure
- Fuji FRENIC-Eco Variable Torque Load Inverters for Fans and Pumps Catalog
- Fuji FRENIC-Eco Variable Torque Load Inverter Datasheet
- Fuji FRENIC-Eco Series User's Manual
- Fuji FRENIC-Eco Series Inverter General Specifications
- Fuji FRENIC-Eco Series Inverter Engineering Specifications
- Fuji FRENIC-Eco Series Watts Loss Data Sheet
- Fuji FRENIC-Eco Series Drive Efficiency Data Sheet
Option Card and Communication Manuals:
- Fuji I/O card 115V input OPC-115V Instruction Manual
- Fuji Relay Output Card OPC-F1-RY Installation Manual
- Fuji RS-485 Communications Card OPC-F1-RS Installation Manual
- Fuji RS-485 User Manual
- Fuji Supplement to RS-485 User Manual
- Fuji Inverter Support Software FRENIC Loader 3.3 Instruction Manual
- Fuji BACnet Comm Card OPC-F1-BAC Start-Up Guide
- Fuji BACnet Comm Card OPC-F1-BAC I/O Mapping Addendum
- Fuji CC Link Interface card OPC-F1-CCL Installation Manual
- Fuji DeviceNet Interface Card OPC-F1-DEV Instruction Manual
- Fuji LonWorks Interface Card OPC-F1-LNW Instruction Manual
- Fuji Mutiprotocol Ethernet Interface Card OPC-F1-ETH Instruction Manual
- Fuji Mutiprotocol Wireless Ethernet Interface Card OPC-F1-WiE Instruction Manual
- Fuji Profibus Interface Card OPC-F1-PDP Instruction Manual
Brakes, Keypads and Accessories Manuals:

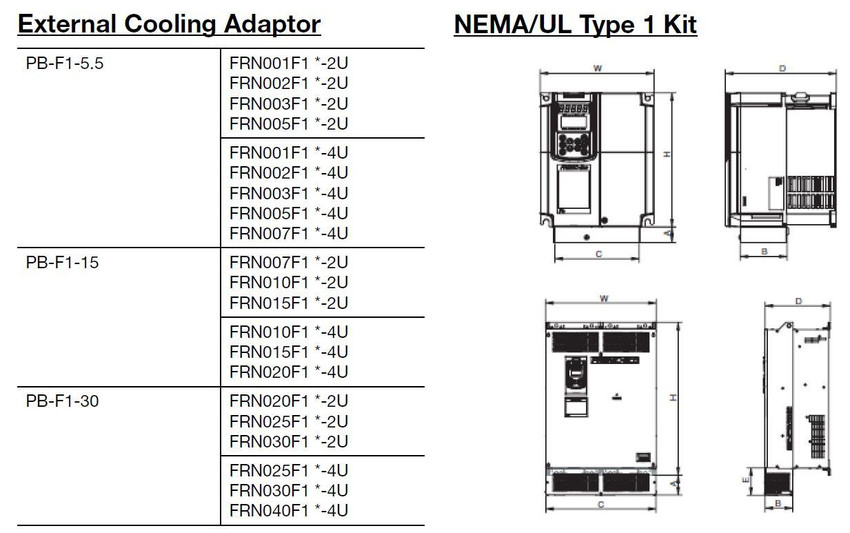

- Fuji Mounting Adapter for Ext Cooling PB-F1/E1 Installation Manual
- Fuji Panel Mount Adaptor to Replace P11S Hp version MA-F1 Installation Manual
- Fuji Panel Mount Adaptor to Replace P11S kW version MA-F1 Installation Manual
- Fuji Dynamic Braking Resistor Up to 30Hp Instruction Manual
- Fuji Dynamic Braking Unit Instruction Manual
- Fuji Dynamic Braking Unit & Dynamic Braking Resistor 40Hp and up Instruction Manual
- Fuji Multi-Function Keypad TP-G1-J1 Instruction Manual
Application Notes:
- Fuji PID with Transducer Application Note
- Fuji Three-Wire Start/Stop Wiring and Function Codes Application Note
- Fuji Pre-Set Speed Operation Wiring and Function Codes Application Note
- Fuji USB to RS-485 Converter Usage Application Note
- Fuji Use of DC Link Reactor for Larger HP Rated Drives Application Note
- Fuji Automatic Restart after Power Failure Application Note
- Fuji HAND-OFF-AUTO Switch Wiring Setup and Parameters Application Note
- Fuji RS-485 Data Format 12 Procedure Application Note
- Fuji ECO Fan Overvoltage Avoidance Application Note
- Fuji H-O-A with PID and a Potentiometer Application Note
- Fuji Line Voltage Quality Can Damage the DC Link Contactor Technical Bulletin
- Fuji Surge Protection Information for AC Drives Technical Bulletin
- Fuji Low Voltage AC Drives Selection Guide
- Fuji Cost of Downtime Infographic Flyer
