FRN005F1S-2U
Alt: FRENIC-Eco Series
$673.20
VFD, 5hp, 230V, 3 Phase, Variable Torque, Fan and Pump Drive
- Weight:
- 10.13 LBS
- Minimum Purchase:
- 1 unit
Description
In 1976, Fuji was the first in the industry to develop general purpose inverters! They helped expand in a number of fields based on their energy saving capabilities.
Today we are an authorized distributor for Fuji variable frequency drives, temperature controllers and HMI. Their FRENIC- line of VFDs are known for their high quality and the ability to suit a wide variety of application needs.
Product Features Include:
Input Ratings:
- Input Main Power Supply: 3 Phase, 200-240V, 50/60Hz
- Input Auxiliary Control Power Input: Single Phase, 200-240V, 50/60Hz
- Voltage/Frequency Variations: Voltage: +10 to -15% (Voltage unbalance 2% or less) *9, Frequency: +5 to -5%
- Rated Input Current (A): With DCR: 14.5, Without DCR: 21.5
- Required Power Supply Capacity (kVA): 5.3
Output Ratings:
- Rated Output Capacity (kVA): 6.0
- Rated Voltage: 3 Phase, 200-240V (with AVR function)
- Rated Output Current (A): 16.7
- Overload Capability: 120% of rated current for 1 minute
General Specifications:
- Torque (%): 20.0
- DC Injection Braking: Starting Frequency: 0.0 to 60.0Hz, Braking Time: 0.0 to 30.0s, Braking Level: 0 to 60%
- Enclosure: IP20, UL open type
- Cooling Method: Fan Cooling
Technical Information:
- Fuji FRENIC-Eco Variable Torque Load Inverters for Fans and Pumps Brochure
- Fuji FRENIC-Eco Variable Torque Load Inverters for Fans and Pumps Catalog
- Fuji FRENIC-Eco Variable Torque Load Inverter Datasheet
- Fuji FRENIC-Eco Series User's Manual
- Fuji FRENIC-Eco Series Inverter General Specifications
- Fuji FRENIC-Eco Series Inverter Engineering Specifications
- Fuji FRENIC-Eco Series Watts Loss Data Sheet
- Fuji FRENIC-Eco Series Drive Efficiency Data Sheet
Option Card and Communication Manuals:
- Fuji I/O card 115V input OPC-115V Instruction Manual
- Fuji Relay Output Card OPC-F1-RY Installation Manual
- Fuji RS-485 Communications Card OPC-F1-RS Installation Manual
- Fuji RS-485 User Manual
- Fuji Supplement to RS-485 User Manual
- Fuji Inverter Support Software FRENIC Loader 3.3 Instruction Manual
- Fuji BACnet Comm Card OPC-F1-BAC Start-Up Guide
- Fuji BACnet Comm Card OPC-F1-BAC I/O Mapping Addendum
- Fuji CC Link Interface card OPC-F1-CCL Installation Manual
- Fuji DeviceNet Interface Card OPC-F1-DEV Instruction Manual
- Fuji LonWorks Interface Card OPC-F1-LNW Instruction Manual
- Fuji Mutiprotocol Ethernet Interface Card OPC-F1-ETH Instruction Manual
- Fuji Mutiprotocol Wireless Ethernet Interface Card OPC-F1-WiE Instruction Manual
- Fuji Profibus Interface Card OPC-F1-PDP Instruction Manual
Brakes, Keypads and Accessories Manuals:
- Fuji Mounting Adapter for Ext Cooling PB-F1/E1 Installation Manual
- Fuji Panel Mount Adaptor to Replace P11S Hp version MA-F1 Installation Manual
- Fuji Panel Mount Adaptor to Replace P11S kW version MA-F1 Installation Manual
- Fuji Dynamic Braking Resistor Up to 30Hp Instruction Manual
- Fuji Dynamic Braking Unit Instruction Manual
- Fuji Dynamic Braking Unit & Dynamic Braking Resistor 40Hp and up Instruction Manual
- Fuji Multi-Function Keypad TP-G1-J1 Instruction Manual
Application Notes:
- Fuji PID with Transducer Application Note
- Fuji Three-Wire Start/Stop Wiring and Function Codes Application Note
- Fuji Pre-Set Speed Operation Wiring and Function Codes Application Note
- Fuji USB to RS-485 Converter Usage Application Note
- Fuji Use of DC Link Reactor for Larger HP Rated Drives Application Note
- Fuji Automatic Restart after Power Failure Application Note
- Fuji HAND-OFF-AUTO Switch Wiring Setup and Parameters Application Note
- Fuji RS-485 Data Format 12 Procedure Application Note
- Fuji ECO Fan Overvoltage Avoidance Application Note
- Fuji H-O-A with PID and a Potentiometer Application Note
- Fuji Line Voltage Quality Can Damage the DC Link Contactor Technical Bulletin
- Fuji Surge Protection Information for AC Drives Technical Bulletin
- Fuji Low Voltage AC Drives Selection Guide
- Fuji Cost of Downtime Infographic Flyer
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Fuji Electric

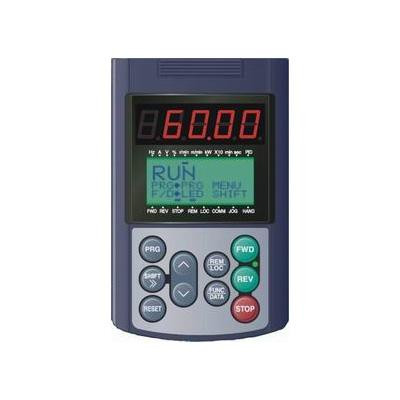

TP-G1-J1
