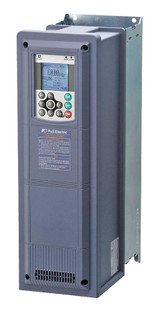

FRN005AR1L-2U

The Fuji FRENIC-HVAC series is an HVAC drive that has a long list of HVAC application and maintenance features included standard.

In the manufacturing sector, fans use about 78.7 billion kilowatt-hours of energy each year. This represents 15 % of the electrical energy consumed in Industry. In the commercial sector, similar usage of electrical energy is needed to operate fan motors for space conditioning.

Motor loads often vary according to cyclical production demands, environmental conditions, changes in customer requirements and seasonal changes.

It makes sense to adjust motor operating speed to demands of the load. Would you regulate your car’s speed with just the brakes?

Varying load applications like centrifugal pumps and fans in particular benefit from ASDs. For example, when pump speed can be cut in half, resulting power consumption is reduced by a factor
of eight!

The FRENIC-HVAC drives have a 3 year warranty.

Capacity range:

• 1 to 125hp at 208VAC
• 1 to 1000hp at 460VAC
• 1 to 300hp at 575VAC

Marshall Wolf Automation is your authorized Fuji distributor!

Features Include:

• Single Phase Input: 200 to 240 V, 50/60 Hz
• Three Phase Input: 200 to 240 V, 50/60 Hz
• Voltage, frequency variations: Voltage: +10 to -15% (Interphase voltage unbalance : 2% or less) *5, Frequency: +5 to -5%
• Rated Output Voltage: Three-phase, 200 to 240 V (with AVR function)
• Overload Capability: 110% - 1 min (Overload capability interval : IEC 61800-2 compliant)
• Rated Output Frequency: 50/60Hz
• Protection Ratings: IP21/ IP55, NEMA/UL TYPE 1, NEMA/ UL TYPE 12
• Built-In Modbus RTU/BACNet MS/TP/Metasys N2
• Available UL Type 1 and Type 12 Models
• Real Time Clock
• 4 PID Controller
• Fire Mode
• Built-In EMC Filter and DCR
• Filter Clogging Prevention
• Built-In USB Port
