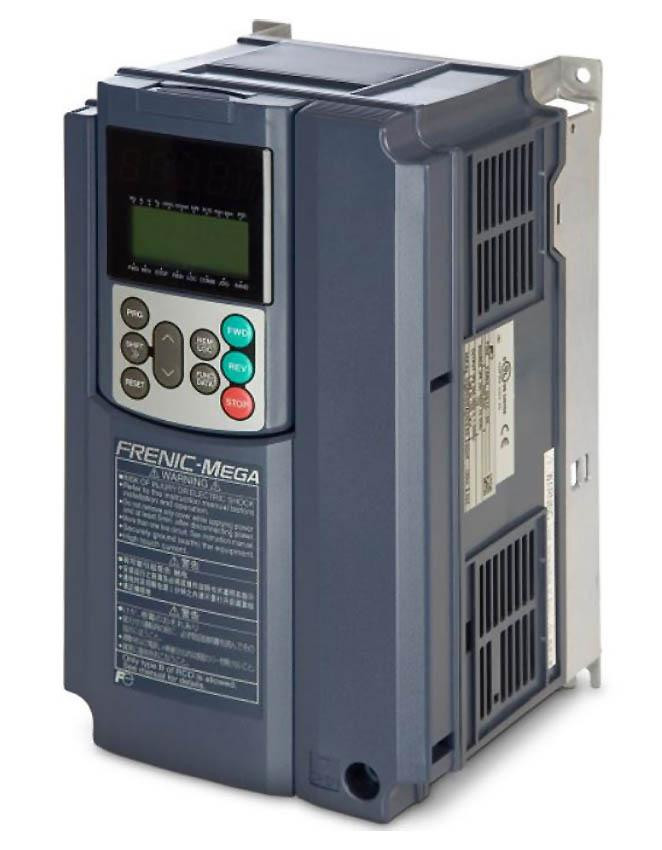

FRN002G1S-2U

Series Features Include:

Control Inputs/Outputs:

• Qty 9 digital inputs
• Qty 2 safety inputs (dedicated)
• Qty 3 analog inputs
• Qty 6 digital outputs; Qty 2 relays (1 Form C & 1 Form A) & Qty 4 transistor, 56 selectable functions
• Qty 2 analog outputs; selectable type; 0 to 10VDC or 4 to 20mA configurable to provide output signal proportional to 15 different functions
• Qty 2 RS-485 connections
• RJ45 keypad port & control terminal block connections
• 24VDC output terminal rated 100mA
• High Performance LED & LCD keypad with NEMA/UL type approved

Motor Control:

• LD (Low Duty): 120% for 1 Min
• MD (Medium Duty): 150% for 1 Min
• HD (High Duty): 200% for 3s / 150% for 1 Min
• High performance closed loop vector control with option card
• High performance sensor-less vector control
• Built-in braking transistor up to 40HP(LD)/30HP(HD)
• Built in braking resistor up to 15HP(LD)/10HP(HD)
• Single phase input for all models

Safety and Standard:

• Safety input compliant with EN ISO13849-1, EN954-1, Category 3
• UL508C, CE
• UL Premium Rating
• NEMA/UL Type 1 by Option Kit
