S664-1-1-0-1-0

Simpson offers a complete line of counters!

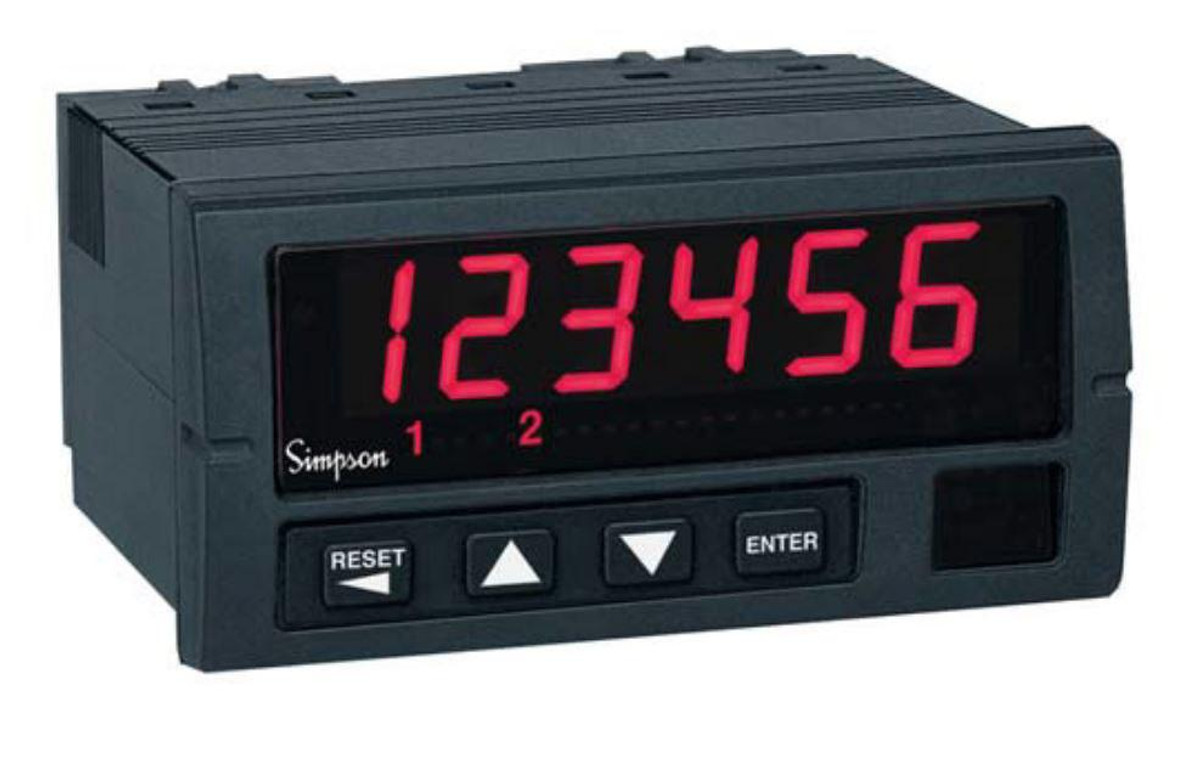

• S660 totalizer counters
• S661 preset rate counters
• S662 batch/dual counter
• S663 rate/totalizer counter

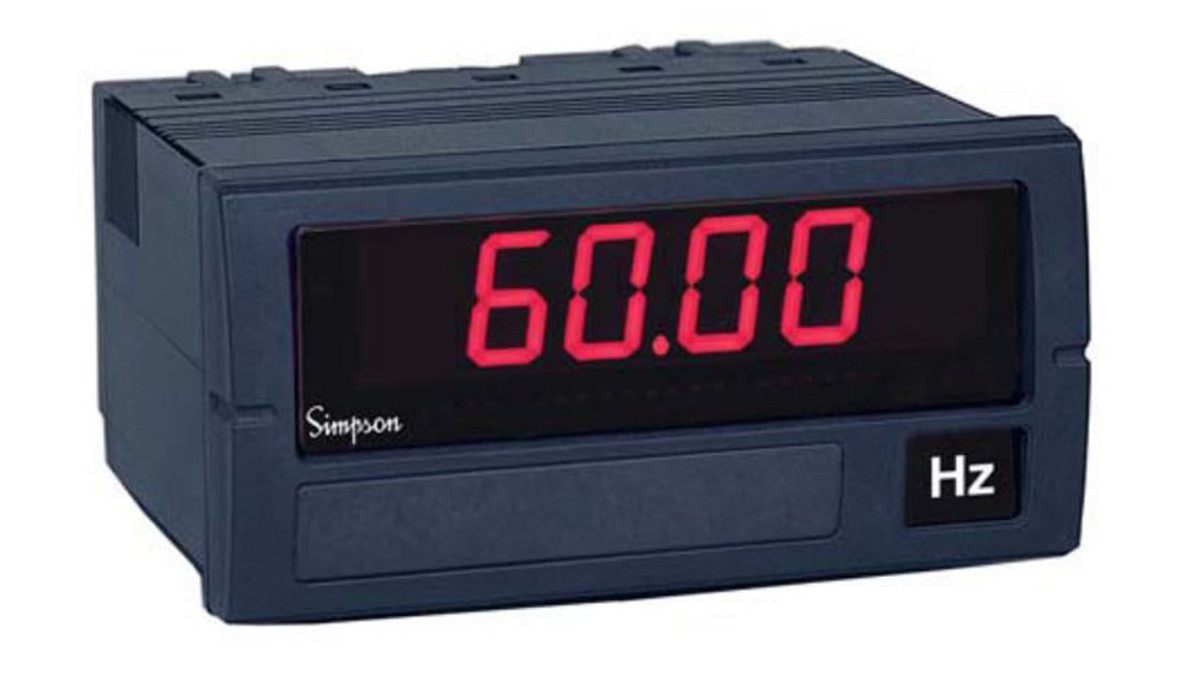

• S664 frequency counter

The front cover is rated NEMA 4X and can easily be programmed from the front panel.

Marshall Wolf Automation is your authorized Simpson Electric distributor!

Features Include:

• Type: 4-digit, 7-segment, red LED
• Height: 0.56" (14.2 mm)
• AC Voltages: 120 or 240VAC, ±10%
• Power Consumption: 3VA
• Current Sinking: 10KΏ 5% Resistor pull-up to (9.0 - 16DCV) ±10%
• Current Sourcing: 5.1KΏ 5% Resistor pull-down to common
• Panel Cutout: 3.62" x 1.77" (92mm x 45mm)

Need More Information?

• Simpson Electric S664 Frequency Counter Datasheet
• Simpson Electric S664 Frequency Counter Operational Manual
