S664-1-1-0-0-0
Alt: S66411000
$287.16

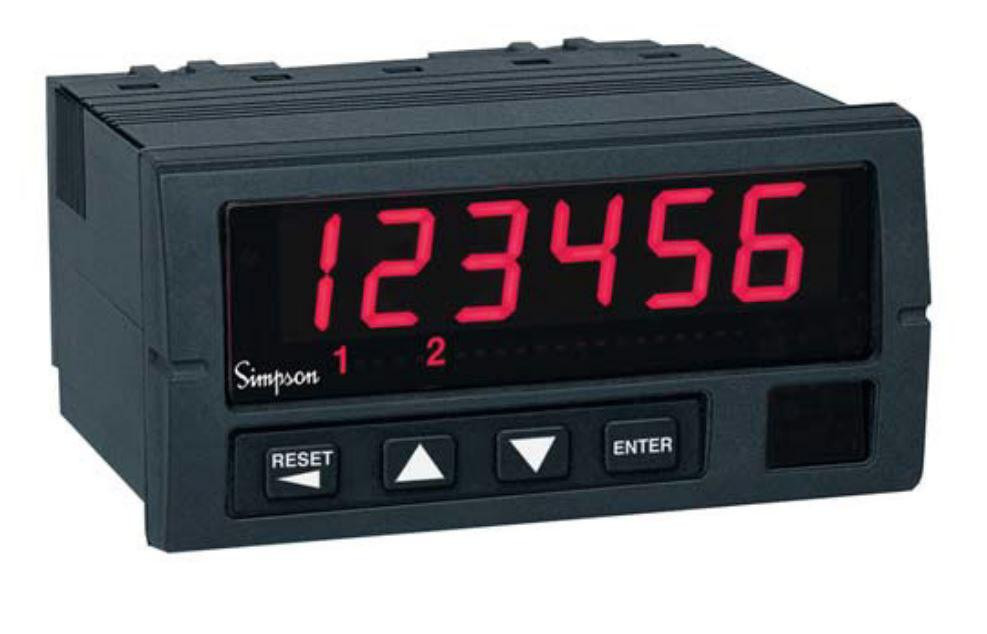

Frequency Counter, 120VAC, Standard Input
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Simpson offers a complete line of counters!
- S660 totalizer counters
- S661 preset rate counters
- S662 batch/dual counter
- S663 rate/totalizer counter
- S664 frequency counter
The front cover is rated NEMA 4X and can easily be programmed from the front panel.
Marshall Wolf Automation is your authorized Simpson Electric distributor!
Specifications
Alternate Part Number
S66411000
Analog/Digital
Digital
Modes
See Spec
Mounting
See Spec
Poles
See Spec or N/A
Series
See Specs
Size
Rectangular
Type of Product
Counter
All - Voltage
110/120VAC
Warranty
1 Year
Weight
1
Features Include:
- Type: 4-digit, 7-segment, red LED
- Height: 0.56" (14.2 mm)
- AC Voltages: 120 or 240VAC, ±10%
- Power Consumption: 3VA
- Current Sinking: 10KΏ 5% Resistor pull-up to (9.0 - 16DCV) ±10%
- Current Sourcing: 5.1KΏ 5% Resistor pull-down to common

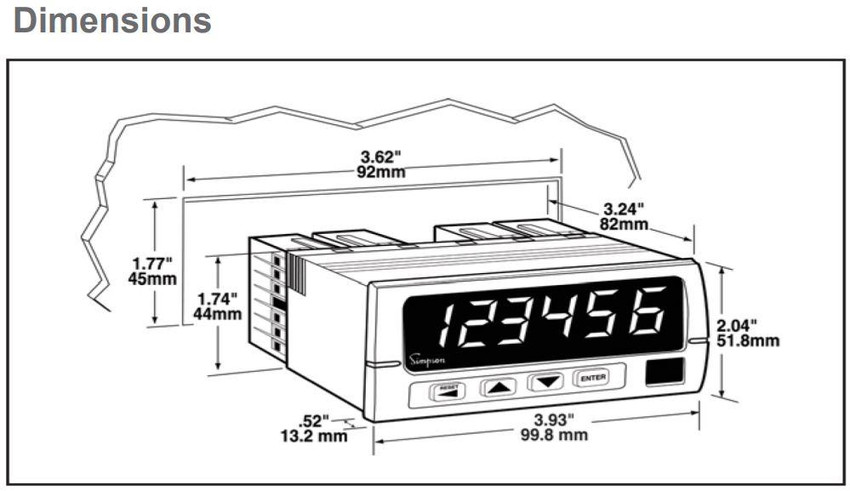

- Panel Cutout: 3.62" x 1.77" (92mm x 45mm)
