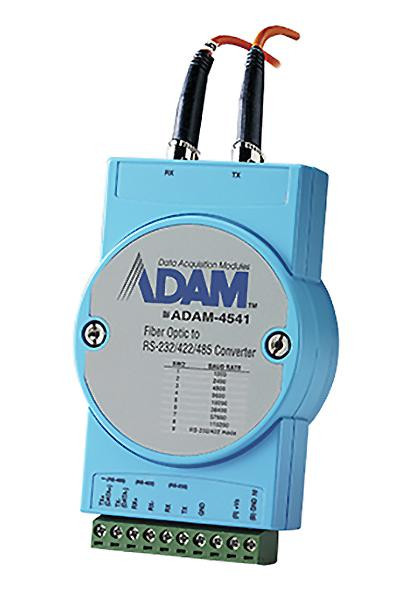

ADAM-4541-C
Alt: ADAM 4000 Series
$307.70
Fiber Optic To RS-232/422/485 Converter
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- 2 x ST fiber connector
- Operation mode: Point-to-Point, Redundant and Ring(half-duplex)
- Half/Full-duplex, bidirectional transmission mode
- Automatic RS-485 data flow control
- LED indicator to monitor status
- Input Voltage: 10~30 VDC
- Power Input Unregulated: 12 ~ 24 VDC
- Power Consumption: 3 W @ 24 VDC
- Optical Power Budget (Attenuation): 15 dB (measured with 62.5/125 μm)
- Transmission Distance: 2.5 km
- Transmission Mode: Multi mode (Send and Receive)
- Wavelength: 820 nm
- Communication Mode: Asynchronous
- Speed Mode (bps): 1200, 2400, 4800, 9600, 19.2 k, 38.4 k, 57.6k, 115.2 k and RS-232/422 mode (switchable)
- Baud Rate (bps): 1200 bps~115.2 kbps
- Connectors: *1 x plug-in terminal block (#14~22 AWG) (RS-232/422/485) 2x ST fiber connector
- Converter/Repeater: Fiber Optic to RS-232/422/485
Technical Information:
- Advantech ADAM-4541 / 4542+ / 4561/4562 Module Technical Data
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
