Takex
F80RPN
Fiber Optic Sensor, Digital Display, PNP, Red LED, 12/24VDC, Cable, IP40, Long Distance, Available While Factory Stock Lasts, New # Will Be F85RN
$132.76

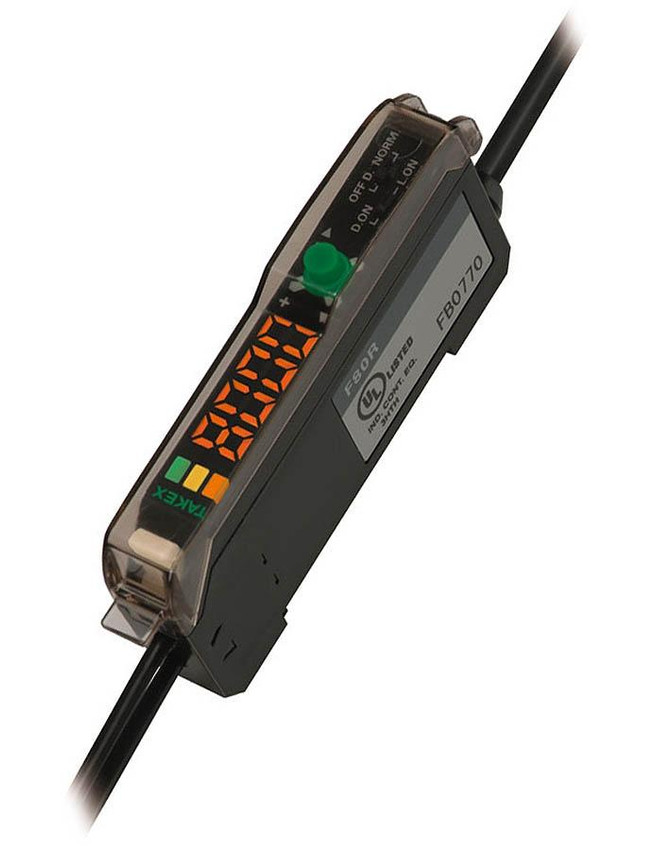

F80R
Alt: Available While Factory Stock Lasts, New # Will Be F85RN
$132.76
Fiber Optic Sensor, Digital Display, NPN, Red LED, 12/24VDC, Cable, IP40, Long Distance, Available While Factory Stock Lasts, New # Will Be F85RN
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Fiber Optic Sensor, Digital Display, NPN, Red LED, 12/24VDC, Cable, IP40, Long Distance
Features Include:
- User friendly and low cost design
- “Long distance” mode for dramatically increased detecting distance
- 8 times(*) wider dynamic range and 0 to 8,000 scaled indication enable precise monitoring.
- 4.5 times(*) larger display allows easy and quick adjustment.
- Low power consumption(*) compared with conventional Takex product
- Power Supply: 12 - 24VDC ±10% / Ripple 10% or less
- Power Consumption: 650 mW or less (25 mA or less at 24 V)
- Operation Mode: Light ON/Dark ON selectable with sliding switch
- Timer: Off delay/disabled selectable with sliding switch
- Response Time: Delay time: 45 ms fixed
- Light Source: Red LED (680 nm)
- Display: Received light level: 4 digits in orange LED (0 - 8000)
- Sensitivity setting: Full auto teaching / Auto teaching
- Sensitivity adjustment function: Provided (manual sensitivity adjustment)
- Protection circuit: Reverse connection protection / Short circuit protection
- Material: Polycarbonate
- Wiring: 2m attached cable (Outer dimension: dia.3.7mm) 0.2sq. 3 cores
- Weight: Approx. 60 g (including 2m cable and mounting bracket)
Output Mode:
- NPN open collector output
- Rating: Sink current 100 mA (30 VDC) or less
- Residual voltage: 1 V or less
Indicator:
- Orange LED: Operation Indicator
- Yellow LED: Mode Indicator
- Teaching LED: Stability Indicator
Switch (SW):
- Output mode selector switch x 1
- Timer selector switch: 1
- Teaching and sensitivity adjustment push + 4-direction button switch x 1
Environmental Specifications:
- Ambient Light: Illumination on light receiving surface: 3,500 lx (incandescent lamp)
- Ambient Humidity: 35 - 85%RH (non-condensing)
- Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
- Shock: 500 m/s2 / 3 times each in 3 directions
- Dielectric withstanding: 1000 VAC for 1 minute
- Insulation resistance: 500 DVC, 20MΩ or more
Ambient Temperature:
- 1-5 adjacent units in operation: -25 - +55 C / Over 6 adjacent units in operation: -25 - +50 C
- Storage: -40 - +70 C (non-freezing)
