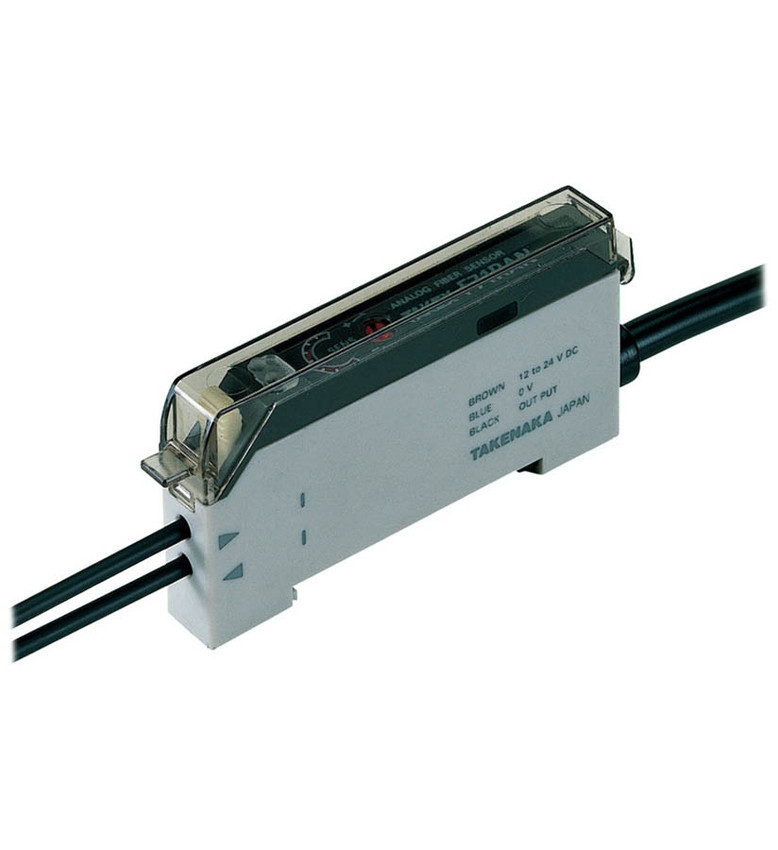

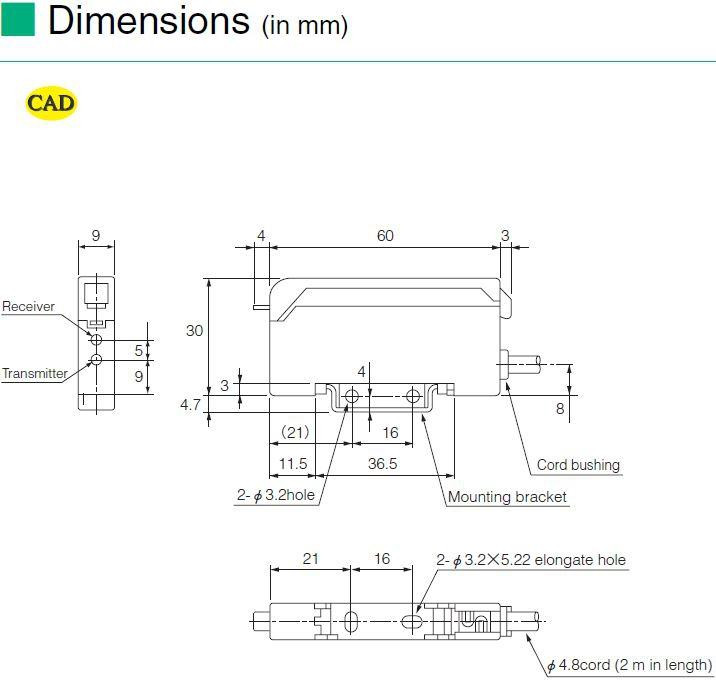

F71RAN

Fiber Optic Sensor, Analog Output, NPN, Red LED, 12/24VDC, Flying Lead, Cable, IP40

Features Include:

• Ultra slim 9 mm body
• 8-turn adjustment with indicator for fine tuning
• Red LED allows easy identification of the detecting position
• Power Supply: 12 - 24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 2% or less
• Current Consumption: 30mA or less
• Output Mode: Effective voltage range: 2 - 8 V (NPN emitter follower)*
• Operation Mode: Voltage output in proportion to received light intensity (current 3 mA or less)
• Temperature Drift: 0.3%/°C or less at -10 - +50°C
• Light Source: Red LED (680 nm)
• Material: Case: heat resistant ABS / Cover: polycarbonate
• Connection: Attached cable (outer dimension: dia. 4.8) 0.2sq. 3 core 2 m

Response Time:

• Rise from 2 to 8 V 10 ms or less
• Fall from 8 to 2 V 25 ms or less

Response Time:

• Light emission frequency channel 1: 500 μs or less
• Light emission frequency channel 2: 600 μs or less

Indicator:

• Green LED: Power Indicator
• Orange LED: Light Intensity Indicator

Environmental Specifications:

• Ambient Light: Incandescent lamp: 10,000 lx
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1000 VAC for 1 minute
• Insulation resistance: 500 DVC, 20MΩ or more

Ambient Temperature:

• -25 - +55°C (non-freezing)
• Storage: -40 - +70°C (non-freezing)
