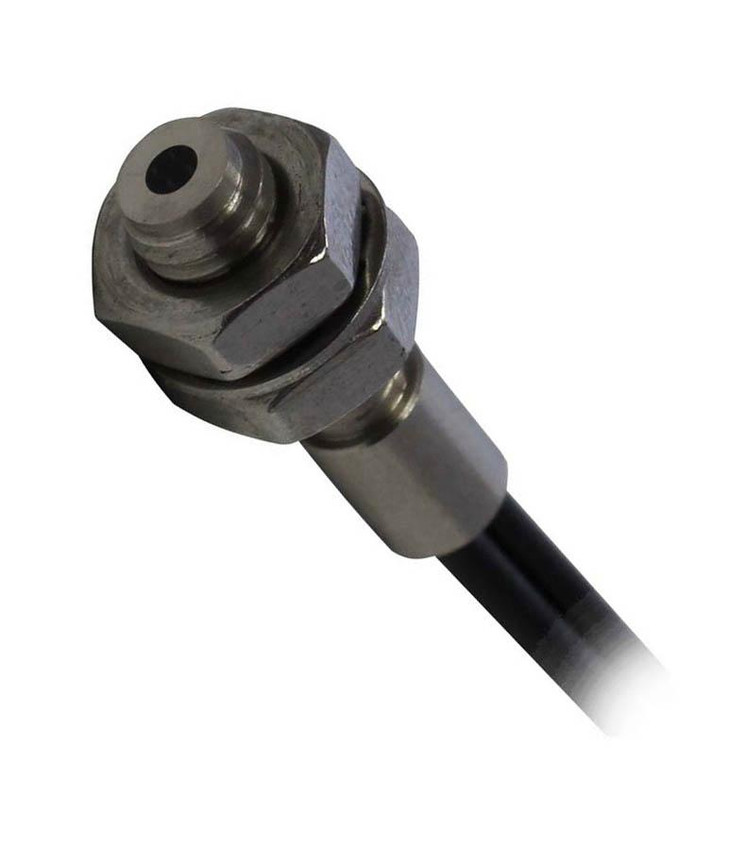

FR5BC

Fiber Optic Cable With M4 Screw, Reflective Type, Longest Distance Model, 2m

Features Include:

• Detection Method: Reflective
• Fiber Optic Cable Length (m): 2 (free-cutting)
• Allowable Bending Radius: R4
• Standard Detection Object Diameter: 100 x 100mm white drawing paper (with F70R)
• Smallest Allowable Detection Object Diameter: dia.0.015 (excluding F71R, F2R)

Diameter:

• Cable: 2.2
• Core: 0.256 x 16

Material:

• Covering: Polyethylene
• Core: Plastic

Detecting distances for individual amplifier models (mm)

• F80R Long distance: 170
• High speed: 95
• F70R/AR: 95
• F71R: 55
• F2R: 25
