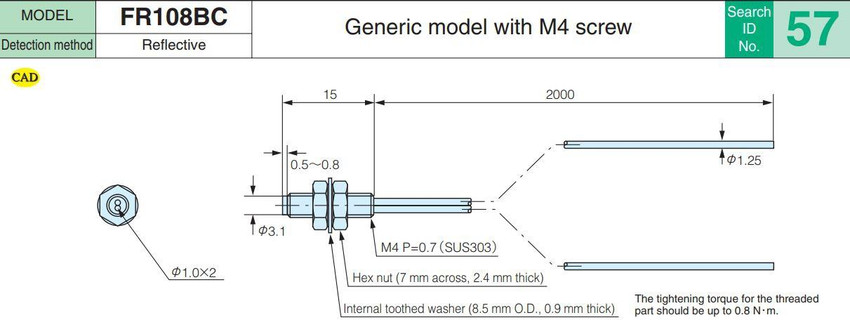

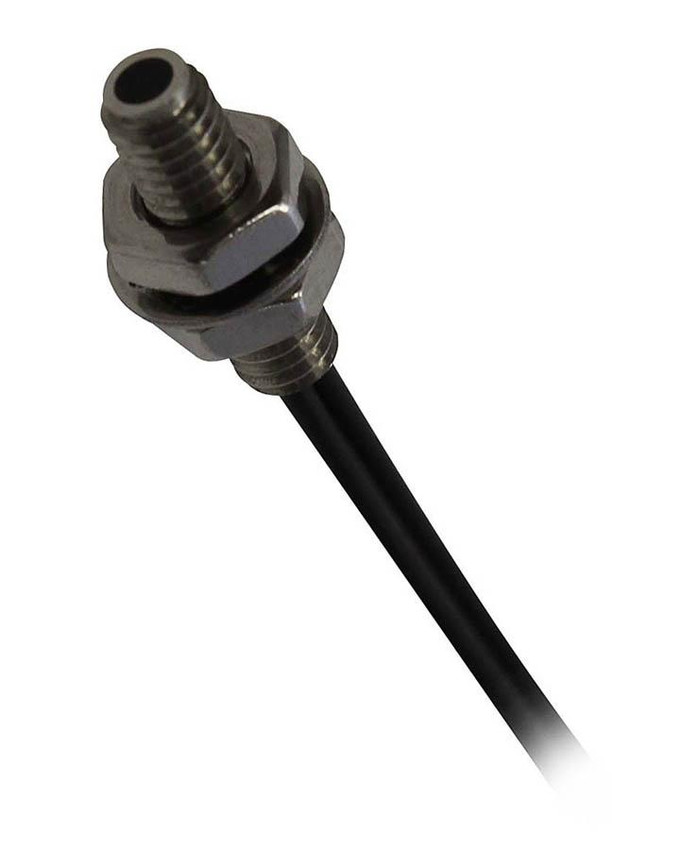

FR108BC

Fiber Optic Cable With M4 Screw, Reflective Type, 2m Cable, General Purpose

Features Include:

• Detection Method: Reflective
• Fiber Optic Cable Length (m): 2 (free-cutting)
• Allowable Bending Radius: R4
• Standard Detection Object Diameter: 200 x 200mm white drawing paper (with F70R)
• Smallest Allowable Detection Object Diameter: dia.0.015 (excluding F71R, F2R)

Diameter:

• Cable: 1.25
• Core: 0.5

Material:

• Covering: Polyethylene
• Core: Plastic

Detecting distances for individual amplifier models (mm)

• F80R Long distance: 360
• High speed: 200
• F70R/AR: 200
• F71R: 120
• F2R: 40
