FT19YBC
$116.45

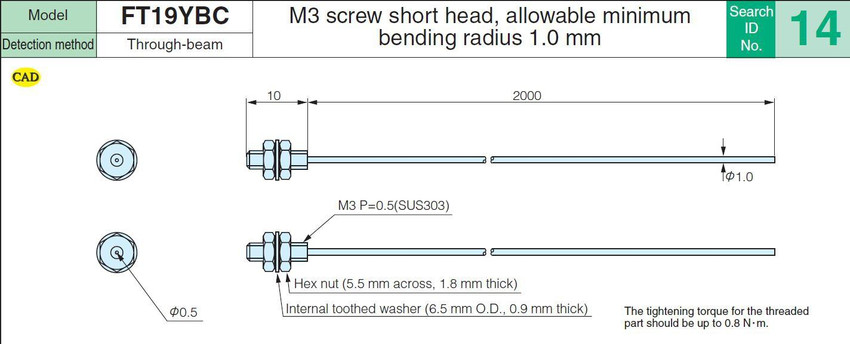

Fiber Optic Cable, With M3 Screw, Through Beam, Short Head, Bending Radius 1.0mm, Flexible
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Fiber Optic Cable, With M3 Screw, Through Beam, Short Head, Bending Radius 1.0mm, Flexible
Specifications
Connection
w/Cable
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
Through Beam
Type of Photoelectric
Fiber Optic
All - Specific Ratings
See Spec
Series
See Specs
Size
See Spec
Warranty
1 Year
Weight
.25
Features Include:
- Detection Method: Through Beam
- Fiber Optic Cable Length (m): 2 (free-cutting)
- Allowable Bending Radius: R1
- Standard Detection Object Diameter: dia.0.5
- Smallest Allowable Detection Object Diameter: dia.0.015 (excluding F71R, F2R)
Diameter:
- Cable: 1.0
- Core: 0.5 (multi-core)
Material:
- Covering: Polyethylene
- Core: Plastic
Detecting distances for individual amplifier models (mm)
- F80R Long distance: 132
- High speed: 75
- F70R/AR: 75
- F71R: 48
- F2R: 15
