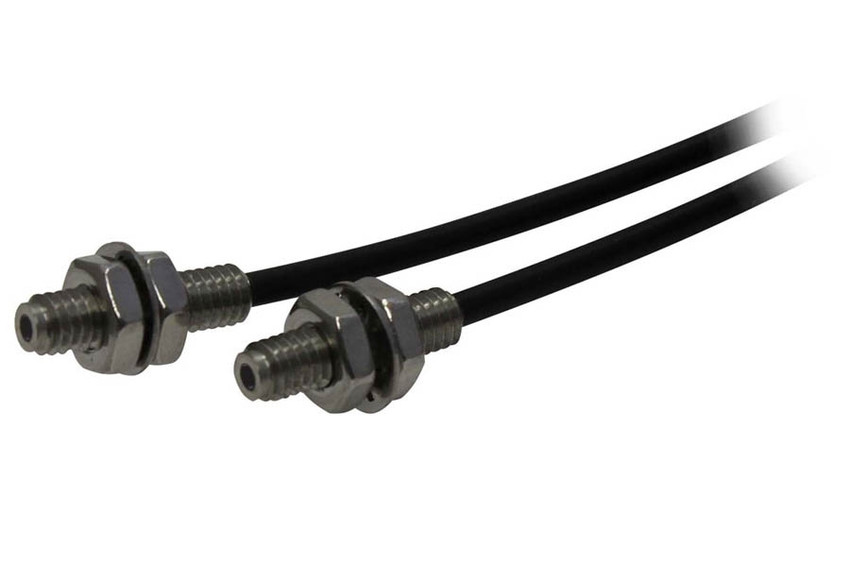

FT105BC-CS
$46.75
Fiber Optic Cable, 2m Length, Diameter: 2.2mm Cable and 1.5mm Core, 45R Bending Radius, Polyethylene Sheath with Plastic Core, -30 to +70°, for CS Color Sensor
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Fiber Optic Cable, M4 thread, 45R Bending Radius, 1.5 ID For Color Sensor, W/Cuttable 2.2dia Cable
Specifications
Connection
w/Cable
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
See Spec or N/A
Type of Photoelectric
Fiber Optic
All - Specific Ratings
See Spec
Series
See Specs
Size
See Spec
Warranty
1 Year
Weight
.25
Quantity
2
Features Include:
- Detection Method: Through Beam
- Fiber optic cable length(m): 2 (free-cutting)
- Ambient Temperature: - 30 - + 70°C
- Allowable Bending Radius: R45
- Standard Detection Object Diameter: Dia. 1.5
- Smallest Allowable Detection Object Diameter: dia.0.015 (excluding F71R, F2R)
Material:
- Covering: Polyethylene
- Core: Plastic
Diameter:
- Cable: 2.2
- Cable: 1.5
Detecting distances for individual amplifier models (mm)
- 80R Long distance : 1800, High speed : 1000
- F70R/AR : 1000
- F71R : 600
- F2R : 160
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Pizzato
CS MP202M0
Programmable Multifunction Safety Module, 16 Digital Inputs Type I, 4 Test Signals Type T, 4PNP Safety Outputs Type OS, 4 Signaling Outputs Type O, USB Port, 45mm Wide, for Safety Applications up to SIL CL 3/PL e, Category 4, GEMNIS Series
$875.28
Takex

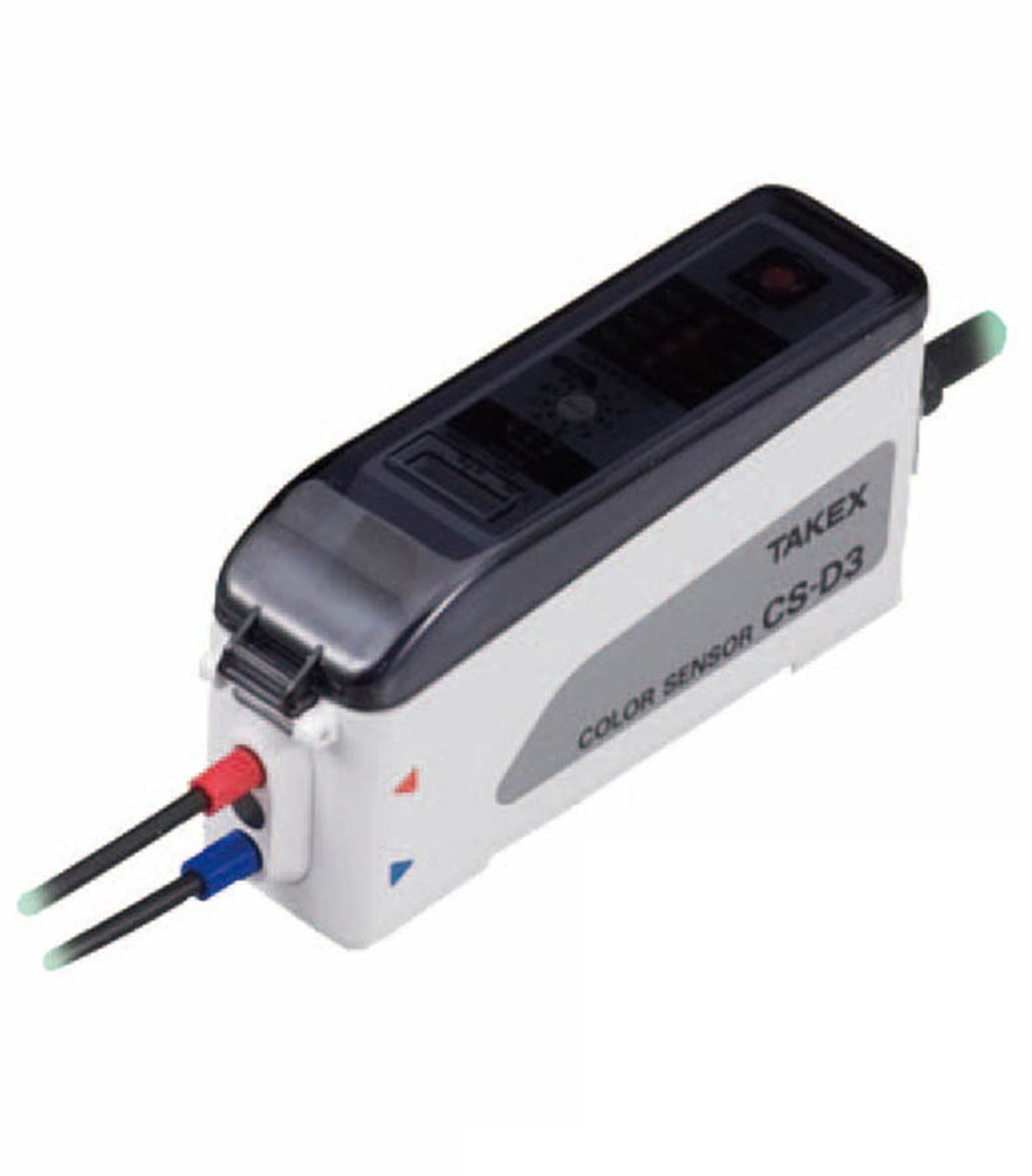

CS-D3
Color Sensor, Amplifier, Color Identification, NPN, RGB LEDs, Fiber Optic Cable, 13mm Detection
$377.40
$166.60
$145.35
Takex

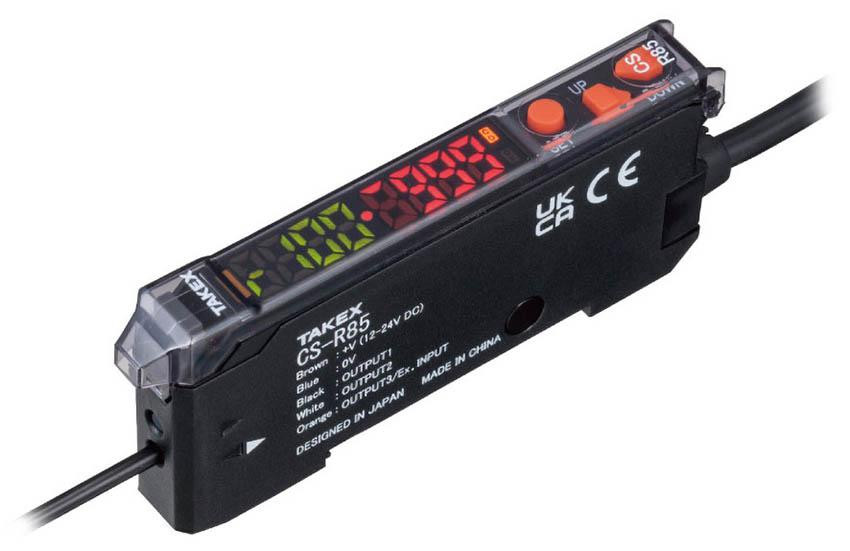

CS-R85
