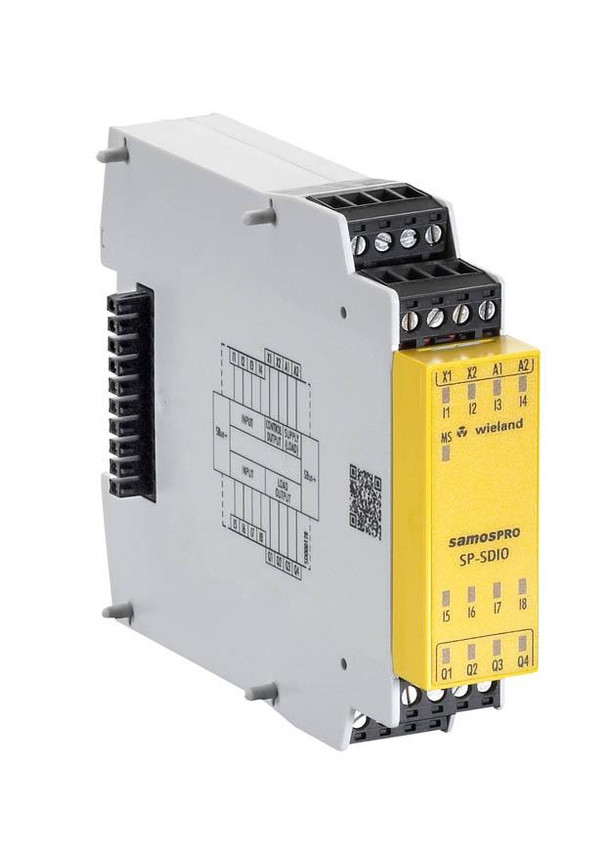

R1.190.0030.0
Alt: SP-SDIO84-P1-K-A
PLC Digital I/O Module, samosPRO with 8 Input, 4 Solid State Output, Screw Terminal Pluggable Connection, 96.5 x 22.5 x 121mm (HWD)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
The new samos® PRO COMPACT modules offering up to 20 safe inputs and 8 safe outputs at a width of only 45 mm already in the base module. With integrated USB, Ethernet and Industrial Ethernet communication. Flexible programmable by the free programming tool samos® PLAN 5+ with integrated simulation and logic analysis.
Through its extensive functionality, the compact design and the user-friendly software, these modules can already cover many different safety applications optimally and cost-effectively. With no extra effort the new modules can be quickly integrated in Ethernet-based networks, so that solutions can be implemented for remote maintenance. If necessary, the new modules from the COMPACT-family can be extended up to 168 safe inputs / outputs. Therefore samos® PRO COMPACT is also perfectly suited for medium to large applications.
Learn more about Wieland products here!
- Number of outputs: 4
- Output current: 2 A
- Short-circuit protection, outputs: Yes
- Type of digital output: Transistor
- Min. allowed output voltage: 16.8 V
- Max. allowed output voltage: 30 V
- Suited for safety functions: Yes
- Number of inputs: 8
- "Input current (at state ""1"")": 8 mA
- Permitted voltage at input: 30 V
- Min. supply voltage at DC: 16.8 V
- Max. supply voltage at DC: 30 V
- Dimensions:
- Depth: 121 mm
- Width: 22.5 mm
- Height: 96.5 mm
