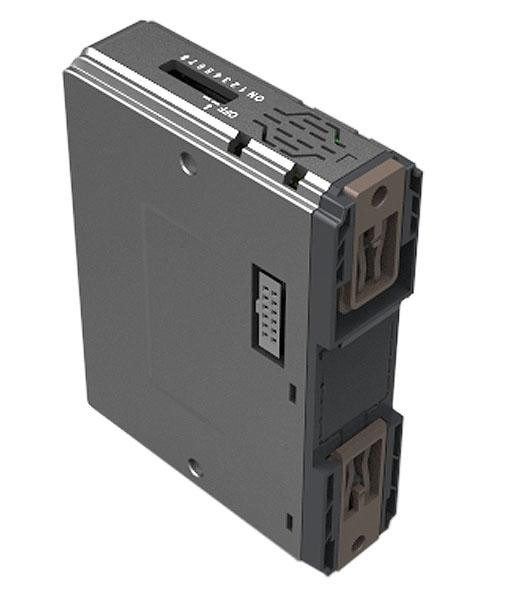

IR-COP
Alt: iR Series
$177.45
Remote I/O, Expansion Module, CANopen Slave
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
The iR series are remote I/O that are available as Fieldbus coupler, analog (iR-A),digital (iR-D) or temperature options..
Specifications
Communication Module Type
I/O Modules
Series
iR Series
Warranty
1 Year
Alternate Part Number
iR Series
Weight
1
Features Include:
- Power Supply: 24 VDC (-15% / +20%)
- Power Dissipation: Nominal 24VDC @ 100mA
- Current Consumption: 170mA

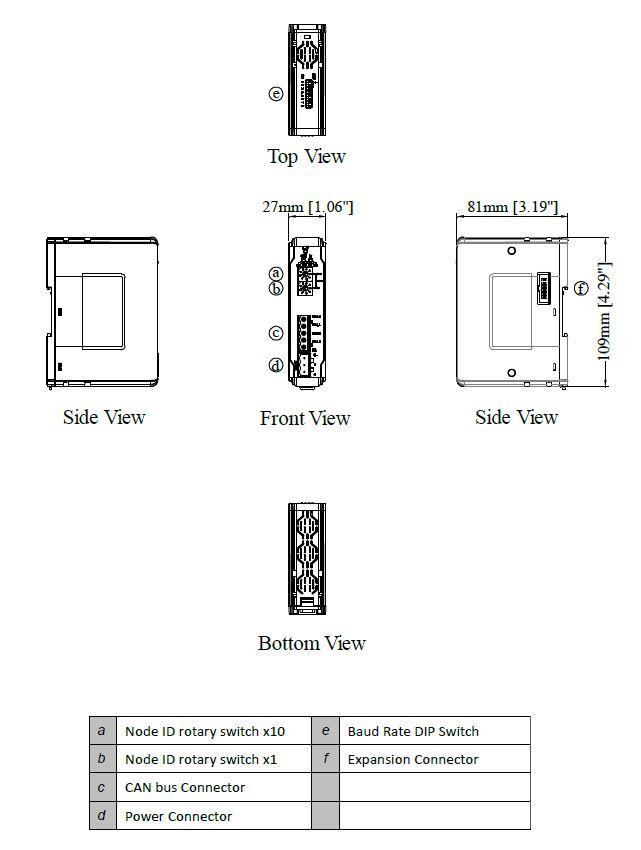

- Dimensions (WxHxD): 27 x 109 x 81 mm
- Number of PDOs (CANopen): 8 Transmit PDOs / 8 Receive PDOs
- Process Data Operating Modes: Synchronous, event-driven, event timer, polling
- Number of SDOs Available: 1 Standard SDOs
- Bus Connection: 1 x open style connector, 5-pole, plug included
- Current for Internal Bus: Max. 5VDC, 2A
- Mount: 35mm DIN rail mounting
- Vibration Endurance: Conforms to EN 60068-2-6 / EN 60068-2-27
- Storage Temperature: -20° ~ 70°C (-4° ~ 158°F)
- Operating Temperature: -20° ~ 55°C (-4° ~ 131°F)
