EKI-2525-BE

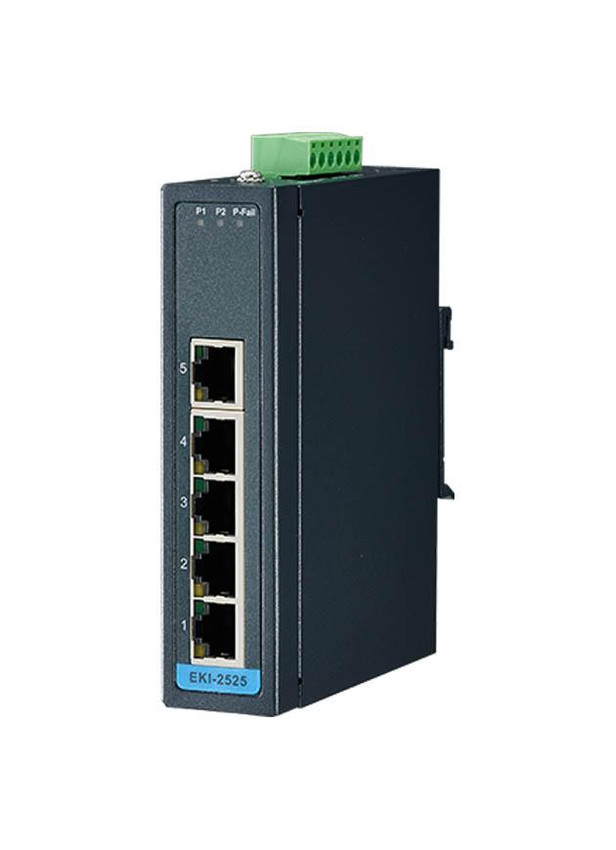

Our Advantech EKI-2525-BE is a 5-port, 10/100Mbps unmanaged industrial ethernet switch. This switch has a metal case, rated IP30 and is DIN rail mountable.

The EKI-2525/2528 series supports a fast Ethernet solution. The power is a 12-48VDC redundant input design and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse.

The Power Polarity Reverse Protect tolerates reverse power wiring while the Overload Current Resetable Fuse secures the system from overload currents.

As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm.

In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Marshall Wolf Automation is your authorized Advantech distributor!

Operating Temperature

• -10 ~ 60°C (14 ~ 140°F)

Transmission Distance

• Ethernet: up to 100 m

Transmission Speed

• 10/100Mbps

Power Input

• 2 x Unregulated 10 ~ 48 VDC

Power Connector

• 6-pin removable screw terminal

Ethernet Connectors

• 5 x RJ-45

Mounting

• DIN-rail, Wall

Certifications

• CE, FCC, UL/cUL 60950-1, Class I, Division 2
