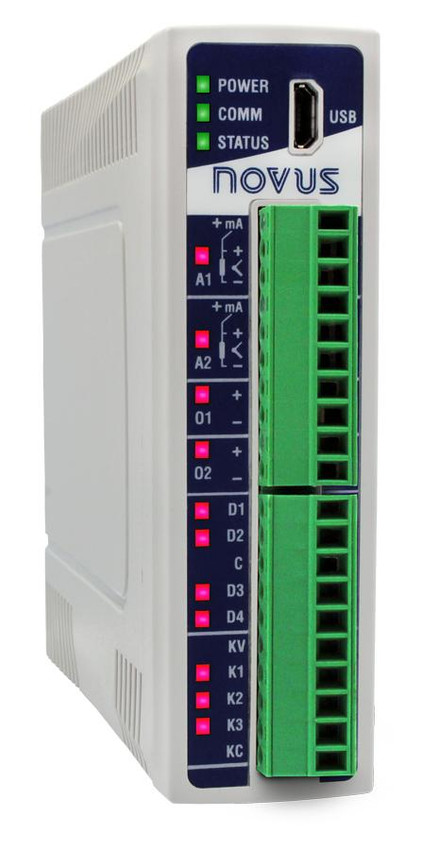

Our Novus DigiRail Connect is a versatile DIN rail I/O module with Ethernet interface that can easily integrate to any automation system.

With a flexible mix of industry-standard inputs and outputs, it performs field analog and digital signal handling with outstanding accuracy.

Bringing the Industry 4.0 to the DIN rail level, the connectivity of DigiRail Connect allows it to be used as a Modbus RTU slave in RS485 networks or as a Modbus TCP server over Ethernet.

Specially designed to comply with international electromagnetic compatibility standards, it ensures robustness and reliability in the most demanding industrial applications.

Features Include:

Power Supply:

• Voltage: 10 V DC to 36 V DC
• Maximum Consumption: 5 W
• Typical Consumption: 20 mA

Inputs:

• RAMIX: 4 digital and 2 analog (isolated)
• DMIX: 8 digital

Outputs:

• RAMIX: 3 digital or 2 relay and 2 analog (isolated)
• DMIX: 4 relays or 8 digital

Analog signals:

• Thermocouples J, K, T, N, E, R, S and B
• Pt100, Pt1000, NTC
• 0-60 mV, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA

Analog input impedance:

• 0-60 mV, Pt100, Pt1000, NTC and thermocouples: >10 MΩ
• 0-5 V, 0-10 V: >1 MΩ
• 4-20 mA: 15 Ω + (1 V @ 20 mA)

Digital Input characteristics:

• Logical level "0": < 0.5 V
• Logical level "1": > 3 V
• Maximum voltage: 30 V
• Input impedance:270 kΩ
• Input current: @ 30 V DC (typical) 0.15 mA
• Maximum frequency (square wave):
• Dry contact: 10 Hz
• PNP: 250 Hz
• NPN: 250 kHz

Digital Output characteristics:

• Maximum load current: 500 mA
• Short circuit current: 200 mA
• Maximum switching voltage: 30 V DC
• Minimum switching voltage: 6 V DC

Relay Output characteristics:

• Type: SPST-NO and SPDT
• Maximum load current: 3 A (SPST) / 6 A (SPDT)
• Switching voltage: 250 V AC
• Suitable for resistive loads

Analog Output characteristics:

• Signal types: 0-20 mA, 4-20 mA, 0-10 V
• Maximum load: 0-20 / 4-20 mA: ≤ 500 Ω
• 0-10 V: ≥ 2000 Ω

Analog Channel resolution:

• Analog inputs: 16 bits (65000 levels)
• Analog outputs: 12 bits

Communication interface:

• USB
• CAN
• Ethernet: 10/100 Mb/s, IEEE standard 802.3u
• RS485

Operating conditions:

• Temperature: -20 to 60°C ( -4 to 140°F)
• Humidity: 5 to 95% RH, non-condensing

Enclosure:

• ABS+PC
