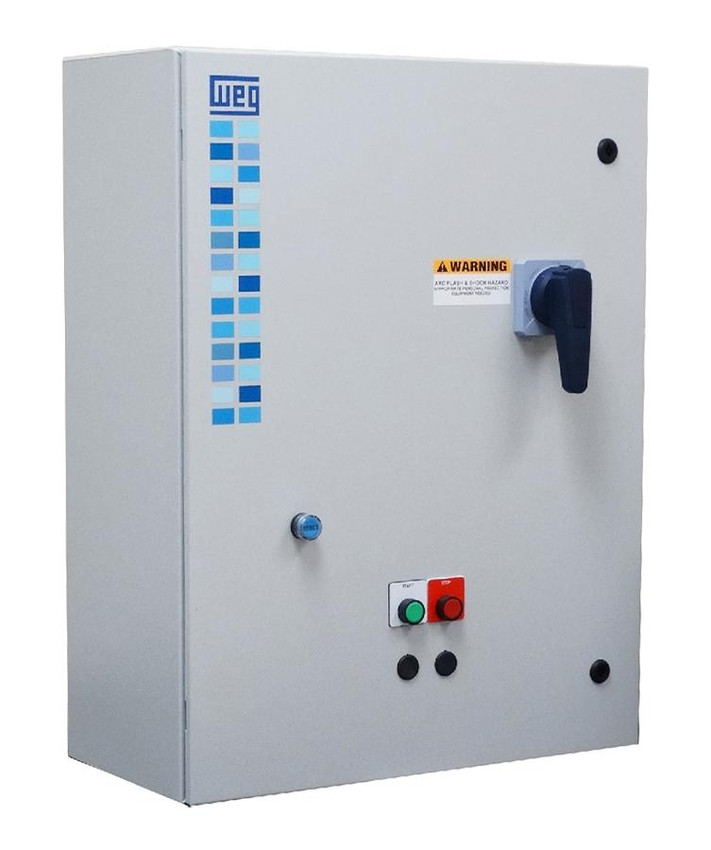

ESWC-150TM1A9-RE7

WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.

Magnetic starters are designed to protect and operate motors.

There are a number of starters available from WEG:

Non-combination starters:

• ESW series is metallic, NEMA 1, across the line starter, three phase
• ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
• ESWX series is metallic, NEMA 7/9, explosion proof starters
• PESW series is non-metallic, NEMA 4X, across the line starter, three phase
• PESWS series is non-metallic, NEMA 4X, across the line starter, single phase

Combination starters:

• ESWC series
• ESWE series
• ESWF series

Marshall Wolf Automation is your authorized WEG distributor!

Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.

Series Features Include:

• Multi-Rated Enclosure Type: 1/3R/4/12
• Multi-Voltage Transformer: primary 208V/230V/460V – secondary 120V
• Branch Disconnect: rotary through-the-door handle
• Short-Circuit Protection: molded case circuit breaker
• Motor Control: magnetic IEC contactor
• Overload Protection: Solid-state overload relay - Selectable trip class 10, 20, 30 / (5:1) ratio adjustable current setting
• Standard Control Devices: RESET, START, STOP pushbuttons

Need More Information?

• Weg ESWC Series Combination Starters Flyer
• Weg ESWC Series Combination Starters Brochure
• Weg Power and Control Products 2020 Catalog
